Fig. 2

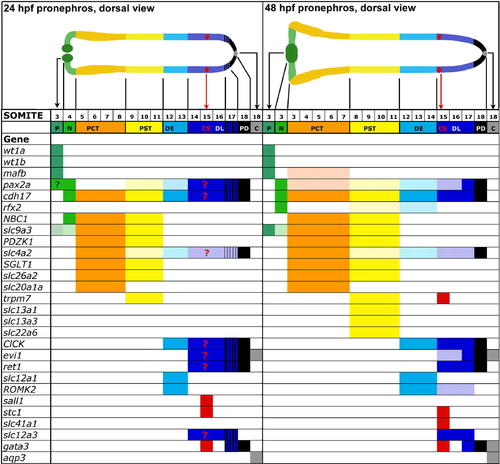

Pronephros Expression of Known Renal Genes and Solute Transporters Isolated Using Functional Genomic. The domain of each pronephros-expressed gene was mapped along the embryonic axis according to somite boundaries, using double in situ hybridization with mhc to label the myotomes. Solid color bars indicate strong expression, light color bars indicate weak expression, and blue/black stripe bars indicate overlap in the expression domains of DL and PD markers; note that rfx2 expression at 48 hpf is discontinuous in the PST and DE domains. Schematic anatomy of the pronephros at 24 hpf (top, left) compared to 48 hpf (top, right). The cloaca (C) is not considered a segment of the pronephros, but is shown to depict the terminus of the pronephros.

Expression Data

Genes:	aqp3a cdh17 gata3 kcnj1a.1 mafba mecom nherf1a pax2a pdzk1 ret rfx2 sall1a slc4a2a slc4a4a slc5a1 slc12a1 slc12a3 slc13a1 slc20a1a slc26a2 slc41a1 stc1l trpm7 wt1a wt1b
Fish:	TU
Anatomical Terms:	cloacal chamber corpuscles of Stannius podocyte posterior pronephric duct pronephric distal early tubule pronephric distal late tubule pronephric proximal convoluted tubule pronephric proximal straight tubule pronephric tubule
Stage Range:	Prim-5 to Long-pec
