Wingert et al., 2007 - The cdx Genes and Retinoic Acid Control the Positioning and Segmentation of the Zebrafish Pronephros. PLoS Genetics 3(10):1922-1938 Full text @ PLoS Genet.

ADDITIONAL FIGURES

EXPRESSION / LABELING:

Genes:	gata3 kcnj1a.1 mecom ret slc12a1 slc12a3 stc1l
Fish:	TU
Anatomical Terms:	corpuscles of Stannius posterior pronephric duct pronephric distal early tubule pronephric distal late tubule
Stage:	Prim-5

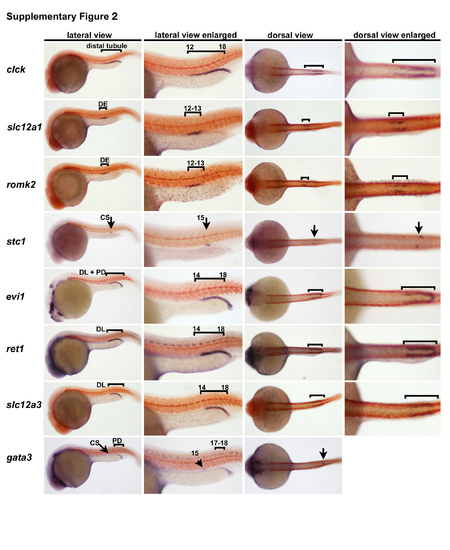

Fig. S2 Zebrafish Distal Pronephros Segment Domains at 24 hpf. Double in situ hybridizations for segment-restricted genes (purple) and mhc (red).

Gene Expression Details

Gene	Fish	Conditions	Stage	Anatomy	Assay
gata3	TU	standard conditions	Prim-5	posterior pronephric duct	ISH
kcnj1a.1	TU	standard conditions	Prim-5	pronephric distal early tubule	ISH
mecom	TU	standard conditions	Prim-5	posterior pronephric duct	ISH
			Prim-5	pronephric distal late tubule	ISH
ret	TU	standard conditions	Prim-5	pronephric distal late tubule	ISH
slc12a1	TU	standard conditions	Prim-5	pronephric distal early tubule	ISH
slc12a3	TU	standard conditions	Prim-5	pronephric distal late tubule	ISH
stc1l	TU	standard conditions	Prim-5	corpuscles of Stannius	ISH

Antibody Labeling Details No data available

Phenotype Details No data available
