FIGURE

Fig. 4

ID

ZDB-FIG-080506-4

Publication

Hong et al., 2008 - The Mych Gene Is Required for Neural Crest Survival during Zebrafish Development

Other Figures

(all 10)

All Figure Page

Back to All Figure Page

Fig. 4

Mych MO affects multiple regions at the 3-somite stage.

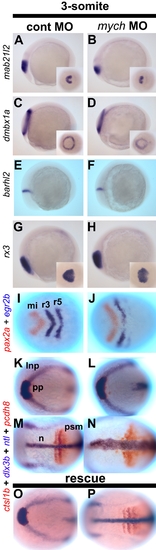

A?P. Lateral views (A?H) and dorsal views (I?P) of control MO-injected (A,C,E,G,I,K,M) and mych MO-injected embryos (B,D,F,H,J,L,N). Mab21l2 (A?B′) as eye anlage and midbrain marker; dmbx1a (C?D′) as eye territory and tectum marker; barhl2 (E,F) as diencephalon marker; rx3 as eye field marker. (I?J) double label with pax2a (red) and egr2b (blue). (K?P). Embryos were examined using four probes, ctsl1b (red), dlx3b (blue), ntl (blue), and pcdh8 (red). (O?P) mych MO-induced defects were rescued by co-injection with mych mRNA. lnp, lateral neural plate; mi, midbrain; n, notochord; pp, prechordal plate; r, rhombomere; psm, pre somitic mesoderm.

Expression Data

Genes:	barhl2 ctslb dlx3b dmbx1a egr2b mab21l2 pax2a pcdh8 rx3 tbxta (all 10)
Fish:	AB AB + MO1-mych
Knockdown Reagent:	MO1-mych
Anatomical Terms:	midbrain neural keel neural plate notochord optic primordium prechordal plate presumptive diencephalon presumptive rhombomere 3 presumptive rhombomere 5 segmental plate (all 9)
Stage:	1-4 somites

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB + MO1-mych
Knockdown Reagent:	MO1-mych
Observed In:	eye hindbrain midbrain trunk
Stage:	1-4 somites

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Open Access

Full text @ PLoS One
