Fig. 7

Multiple defects in pharyngeal arch development caused by mych MO.

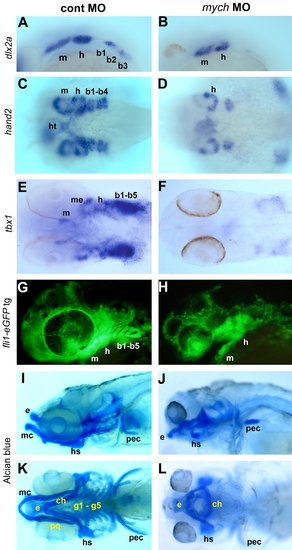

Control MO (A,C,E,G,I,K) and mych UTR MO-injected embryos (B,D,F,H,J,L). A?B. Lateral view of dlx2a expression in mych UTR MO-injected embryos at 26hpf (B). C?D. Ventral view of expression of hand2 at 36hpf. E?F. Ventral view of tbx1 expression at 45hpf. G?H. Lateral view of fli1-eGFP transgenic line at 40hpf. I?L. Lateral (I,J) and ventral (K,L) views of Alcian blue stained day 5 control (I,K) and mych UTR MO-injected embryos (J,L). ch, ceratohyal, b, branchial arch; e, ethmoid plate; g, gill arches; h, hyoid arch; hs, hyosymplectic; ht, heart; m, mandibular arch; mc, Meckel's cartilage; me, mesoderm; pec, pectoral fin; pq, palatoquadrate.
