Zhao et al., 2020 - Copper induce zebrafish retinal developmental defects via triggering stresses and apoptosis. Cell communication and signaling : CCS   18:45 Full text @ Cell Commun. Signal.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Conditions:
Anatomical Terms:
Stage Range: Protruding-mouth to Day 4
PHENOTYPE:
Fish:
Conditions:
Observed In:
Stage Range: Protruding-mouth to Day 4

Fig. 1

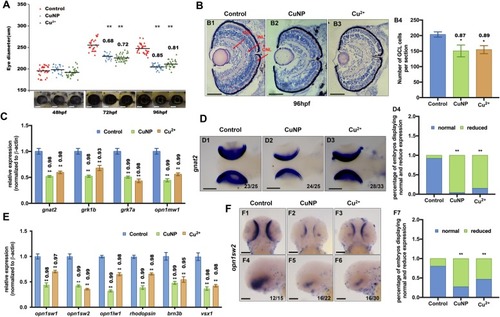

Retinal developmental defects in copper stressed embryos. A Measurement of eye diameter of the embryos from control, Cu2+- and CuNPs- stressed groups at 48 hpf, 72 hpf, and 96 hpf, respectively. B H&E staining analysis of retina of embryos from control (B1), Cu2+-stressed (B2) and CuNPs-stressed groups (B3) at 96 hpf. Control embryos at 96 hpf developed normal retina with a differentiated GCL (ganglion cell layer), an INL (inner nuclear layer), and an ONL (outer nuclear layer) (indicated by the red arrows). (B4) Average number of GCL cells per section/per embryo in each group (n > 3, 3–5 sections from each embryo were used for counting the GCL cells). C Expression of retinal marker genes gnat2, grk1b, grk7a, and opnlmw1 in embryos from control, Cu2+-stressed, and CuNPs-stressed groups. D WISH data of gnat2 in embryos from control, Cu2+-stressed, and CuNPs-stressed groups, respectively (D1-D3), and the percentage of embryos exhibiting reduced expression in different groups (D4). E Expression of retinal marker genes opn1sw1, opn1sw2, opn1lw1, rhodopsin, brn3b, and vsx1 in embryos from control, Cu2+ − stressed, and CuNPs-stressed groups. F WISH data of opn1sw2 in embryos from control, Cu2+-stressed, and CuNPs-stressed groups, respectively (F1-F6), and the percentage of embryos exhibiting reduced expression in different groups (F7). B1-B3, sagittal slides in eyes domain; D1-D3, dorsal view, anterior to the left; F1-F3, dorsal view, anterior to the up; F4-F6 lateral view, anterior to the left. Scale bar: A, B1-B3, and F1-F6, 100 μm; D1-D3, 200 μm **, P < 0.01; *, P < 0.05

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
gnat2 AB control Protruding-mouth retina ISH
Day 4 whole organism RTPCR
AB chemical treatment: copper(2+) Protruding-mouth retina ISH
Day 4 whole organism RTPCR
AB chemical treatment: copper atom Protruding-mouth retina ISH
Day 4 whole organism RTPCR
grk1b AB control Day 4 whole organism RTPCR
AB chemical treatment: copper(2+) Day 4 whole organism RTPCR
AB chemical treatment: copper atom Day 4 whole organism RTPCR
grk7a AB control Day 4 whole organism RTPCR
AB chemical treatment: copper(2+) Day 4 whole organism RTPCR
AB chemical treatment: copper atom Day 4 whole organism RTPCR
opn1lw1 AB control Day 4 whole organism RTPCR
AB chemical treatment: copper(2+) Day 4 whole organism RTPCR
AB chemical treatment: copper atom Day 4 whole organism RTPCR
opn1mw1 AB control Day 4 whole organism RTPCR
AB chemical treatment: copper(2+) Day 4 whole organism RTPCR
AB chemical treatment: copper atom Day 4 whole organism RTPCR
opn1sw1 AB control Day 4 whole organism RTPCR
AB chemical treatment: copper(2+) Day 4 whole organism RTPCR
AB chemical treatment: copper atom Day 4 whole organism RTPCR
opn1sw2 AB control Day 4 retina ISH
Day 4 whole organism RTPCR
AB chemical treatment: copper(2+) Day 4 retina ISH
Day 4 whole organism RTPCR
AB chemical treatment: copper atom Day 4 retina ISH
Day 4 whole organism RTPCR
pou4f2 AB control Day 4 whole organism RTPCR
AB chemical treatment: copper(2+) Day 4 whole organism RTPCR
AB chemical treatment: copper atom Day 4 whole organism RTPCR
rho AB control Day 4 whole organism RTPCR
AB chemical treatment: copper(2+) Day 4 whole organism RTPCR
AB chemical treatment: copper atom Day 4 whole organism RTPCR
vsx1 AB control Day 4 whole organism RTPCR
AB chemical treatment: copper(2+) Day 4 whole organism RTPCR
AB chemical treatment: copper atom Day 4 whole organism RTPCR
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
AB chemical treatment: copper(2+) Protruding-mouth eye decreased diameter, abnormal
Protruding-mouth retina gnat2 expression decreased amount, abnormal
Day 4 eye decreased diameter, abnormal
Day 4 retina opn1sw2 expression decreased amount, abnormal
Day 4 retinal ganglion cell layer cell decreased amount, abnormal
Day 4 whole organism gnat2 expression decreased amount, abnormal
Day 4 whole organism grk1b expression decreased amount, abnormal
Day 4 whole organism grk7a expression decreased amount, abnormal
Day 4 whole organism opn1lw1 expression decreased amount, abnormal
Day 4 whole organism opn1mw1 expression decreased amount, abnormal
Day 4 whole organism opn1sw1 expression decreased amount, abnormal
Day 4 whole organism opn1sw2 expression decreased amount, abnormal
Day 4 whole organism pou4f2 expression decreased amount, abnormal
Day 4 whole organism rho expression decreased amount, abnormal
Day 4 whole organism vsx1 expression decreased amount, abnormal
AB chemical treatment: copper atom Protruding-mouth eye decreased diameter, abnormal
Protruding-mouth retina gnat2 expression decreased amount, abnormal
Day 4 eye decreased diameter, abnormal
Day 4 retina opn1sw2 expression decreased amount, abnormal
Day 4 retinal ganglion cell layer cell decreased amount, abnormal
Day 4 whole organism gnat2 expression decreased amount, abnormal
Day 4 whole organism grk1b expression decreased amount, abnormal
Day 4 whole organism grk7a expression decreased amount, abnormal
Day 4 whole organism opn1lw1 expression decreased amount, abnormal
Day 4 whole organism opn1mw1 expression decreased amount, abnormal
Day 4 whole organism opn1sw1 expression decreased amount, abnormal
Day 4 whole organism opn1sw2 expression decreased amount, abnormal
Day 4 whole organism pou4f2 expression decreased amount, abnormal
Day 4 whole organism rho expression decreased amount, abnormal
Day 4 whole organism vsx1 expression decreased amount, abnormal
