ZFIN ID: ZDB-FIG-160817-43
Naylor et al., 2016 - BMP and retinoic acid regulate anterior-posterior patterning of the non-axial mesoderm across the dorsal-ventral axis. Nature communications   7:12197 Full text @ Nat. Commun.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Anatomical Term:
Stage: 75%-epiboly

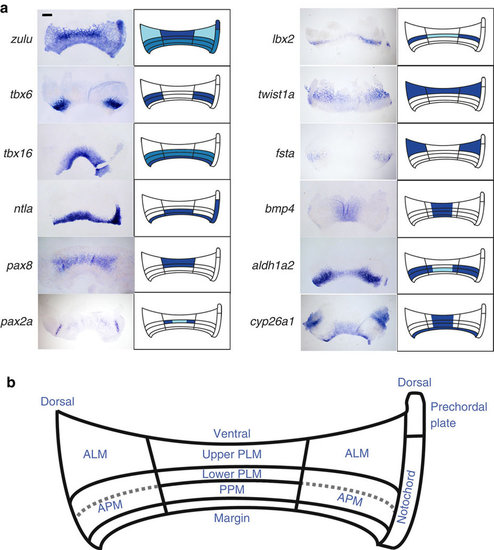

Fig. 2

Gene expression analysis of late gastrula embryos reveals distinct ventroposterior and dorsoanterior territories.

(a) Whole-mount in situ hybridization analysis for various mesodermal markers as indicated. Embryos were flat-mounted and are orientated with the animal side at the top and vegetal side at the bottom. Only mesodermal expression is highlighted with the exception of bmp4, which is expressed in the epiblast (expression in the hypoblast is unknown). (b) Schematic representation of the late gastrula mesodermal subdivisions. ALM, anterior lateral mesoderm; PPM, posterior paraxial mesoderm. Scale bar, 200 ┬Ám.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
aldh1a2 TU standard conditions 75%-epiboly mesoderm ISH
bmp4 TU standard conditions 75%-epiboly mesoderm ISH
cyp26a1 TU standard conditions 75%-epiboly mesoderm ISH
fsta TU standard conditions 75%-epiboly mesoderm ISH
lbx2 TU standard conditions 75%-epiboly mesoderm ISH
pax2a TU standard conditions 75%-epiboly mesoderm ISH
pax8 TU standard conditions 75%-epiboly mesoderm ISH
tbx6 TU standard conditions 75%-epiboly mesoderm ISH
tbx16 TU standard conditions 75%-epiboly mesoderm ISH
tbxta TU standard conditions 75%-epiboly mesoderm ISH
twist1a TU standard conditions 75%-epiboly mesoderm ISH
wu:fb97g03 TU standard conditions 75%-epiboly mesoderm ISH
Antibody Labeling Details No data available
Phenotype Details No data available
