Fig. 4

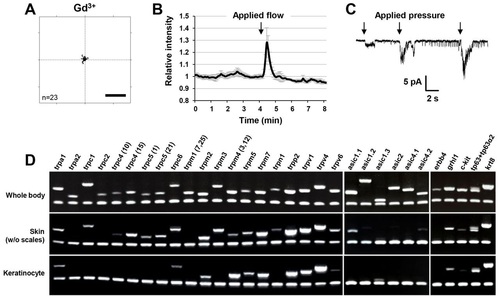

Ca²⁺ influx occurs predominantly through mechanosensitive channels. (A) xy-trajectory plot of cells exposed to 10µM Gd³⁺ for 1hour. Scale bar: 200µm. (B) Graph from transient shear stress applied to keratinocyte sheets indicates a transient increase in whole-cell [Ca²⁺]_i during application of fluid flow (n = 3 cell sheets). (C) Whole-cell voltage clamp recording of a migrating keratinocyte in fish Ringer′s solution. Three times gentle pressure was applied to the patch pipette, increasing the probability of mechanosensitive channels to be in the open state. Spontaneously activated channels are open briefly. (D) Tissue-specific gene expression analysis from adult zebrafish keratinocytes of two ion channel families containing mechanosensitive Ca²⁺-permeable channels. Genes found at multiple loci were amplified at consensus regions, with the exception of trpc4 and trpc5 that were analyzed separately. The chromosome number is given for genes that were found at multiple loci. Loading control is β-actin.

Expression Data

Genes:	asic1a asic1b asic1c asic2 asic4a asic4b erbb4a grhl1 kita krt8 pkd2 tp63 trpa1a trpa1b trpc1 trpc2b trpc4a trpc4b trpc5a trpc5b trpc6a trpm1a trpm2 trpm3 trpm4a trpm5 trpm7 trpn1 trpv1 trpv4 trpv6
Fish:	WT
Anatomical Terms:	integument keratinocyte whole organism
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
