Fig. 5
- ID
- ZDB-FIG-180817-8
- Publication
- Mahony et al., 2018 - Oncostatin M and Kit-Ligand Control Hematopoietic Stem Cell Fate during Zebrafish Embryogenesis
- Other Figures
- (all 11)
- All Figure Page
- Back to All Figure Page

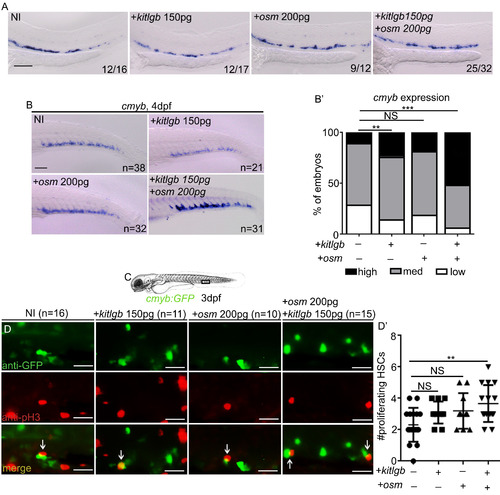

osm and kitlgb Signal Synergistically to Expand HSCs in the CHT (A) runx1 ISH at 28 hpf in NI embryos and kitlgb or osm mRNA-injected embryos (injected separately and together) at subliminal doses. Scale bar, 100 ?m. (B) cmyb ISH at 4 dpf in NI embryos and kitlgb or osm mRNA-injected embryos (injected separately and together) at subliminal doses. Scale bar, 100 ?m. (B?) cmyb expression analysis. Analysis is Fisher's exact test. NI versus kitlgb, p = 0.29; NI versus osm, p = 0.48; NI versus kitlgb + osm, p = 0.0001. (C) Imaging schematic. (D) Immunofluorescence for GFP and pH3. Arrows represent double-positive, proliferating cells. Scale, 25 ?m. (D?) Quantification of double-positive cells. (D?) Data are means ± SD and analysis is an ordinary one-way ANOVA with multiple comparisons. ANOVA p value = 0.0082. ???p < 0.001; ??p < 0.01; NS, p > 0.05. |
| Genes: | |
|---|---|
| Antibody: | |
| Fish: | |
| Anatomical Terms: | |
| Stage Range: | Prim-5 to Day 4 |
