Fig. 11

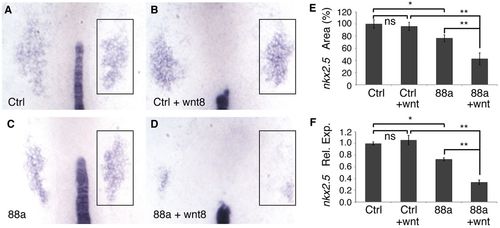

Limited WNT signaling sensitizes cardiogenic mesoderm to subthreshold depletion of Tmem88a. (A-D) WISH for nkx2.5 (box) and ntl in representative 8-somite stage control morphants (Ctrl) and subthreshold tmem88a morphants (88a), without or with (+wnt8) low-level WNT activation. Retraction of the notochord and general widening of the mesodermal plate occur in heat-shocked embryos, but independently of MO injection. Heat-shock treatment was administered to 75% epiboly embryos for 30 minutes. n>20 embryos analyzed per panel. (E) nkx2.5⁺ area normalized to control values. n=10 embryos measured per condition. (F) nkx2.5 relative expression levels assessed by qPCR. ^*P<0.05, ^**P<0.01; ns, not significant; error bars indicate s.d.

Expression Data

Genes:	nkx2.5 tbxta
Fish:	w34Tg w34Tg + MO3-tmem88a + MO4-tmem88a
Condition:	heat shock
Knockdown Reagents:	MO3-tmem88a MO4-tmem88a
Anatomical Terms:	myocardial precursor notochord
Stage:	5-9 somites

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	w34Tg w34Tg + MO3-tmem88a + MO4-tmem88a
Condition:	heat shock
Knockdown Reagents:	MO3-tmem88a MO4-tmem88a
Observed In:	canonical Wnt signaling pathway cardioblast cell fate specification myocardial precursor
Stage:	5-9 somites

Phenotype Detail
