Ptena and ptenb genes play distinct roles in zebrafish embryogenesis

Authors
Croushore, J.A., Blasiole, B., Riddle, R.C., Thisse, C., Thisse, B., Canfield, V.A., Robertson, G.P., Cheng, K.C., and Levenson, R.
Source
Full text @ Dev. Dyn.

Expression of zebrafish ptena mRNA during embryogenesis. Expression of ptena was analyzed by RT-PCR and whole-mount in situ hybridization. A: Expression of ptena splice variants during zebrafish development determined by RT-PCR. Bands of 305 and 236 bp represent fragments of the long and short splice variants, respectively. B-K: Expression of ptena determined by whole-mount in situ hybridization. B: Early somitogenesis, lateral view. C: Mid-somitogenesis, lateral view. D: Twenty-four hpf, lateral view. E: Twenty-four hpf, lateral view of head. F: Twenty-four hpf, lateral view of tail. G: Thirty-six hpf, lateral view of otic vesicle. H: Twenty-four hpf, transverse section of trunk. I: Forty-eight hpf, lateral view. J: Forty-eight hpf, transverse section of trunk. K: Five dpf, lateral view. A, aorta wall; AV, axial vasculature; BA, branchial arches; END, endoderm; FP, floor plate; LLP, lateral line primordium; NC, notochord; OV, otic vesicle; PF, pectoral fin; R, retina; SC, spinal cord; TEL, telencephalon.

Expression of zebrafish ptenb mRNA during embryogenesis. Expression of ptenb was analyzed by RT-PCR and whole-mount in situ hybridization. A: Expression of ptenb splice variants during zebrafish development determined by RT-PCR. Bands of 298 and 229 bp represent fragments of the long and short splice variants, respectively. B-K: Expression of ptenb determined by whole-mount in situ hybridization. B: Early somitogenesis, lateral view. C-H: Mid-somitogenesis. C: Ten-somite stage, lateral view. D: 10-somite stage, dorsal view of somites obtained with differential interference contrast microscopy. E: Ten-somite stage, transverse section. F: Eighteen-somite stage, lateral view. G: Eighteen-somite stage, dorsal view of tail. H: Eighteen-somite stage, dorsal view of head. I: Twenty-four hpf, lateral view. J: Twenty-four hpf, lateral view of head. K: Thirty-six hpf, lateral view of otic vesicle. L: Forty-eight hpf, lateral view. M: Five dpf, lateral view. AC, adaxial cells; BA, branchial arches; CG, cranial ganglia; D, diencephalon; EPI, epiphysis; E, eye; NC, notochord; OV, otic vesicle; PF, pectoral fin; S, somite; SC, spinal cord; TEL, telencephalon; TEG, tegmentum.

Effect of ptena-MO1 morpholino on zebrafish development. All panels (except I and J) are lateral views with anterior to the left. A: Twenty-four hpf, wild type embryo. B: Twenty-four hpf, ptena morphant. C: Forty-eight hpf, wild type embryo. D: Forty-eight hpf, ptena morphant. E: Forty-eight hpf, trunk of wild type embryo. F: Forty-eight hpf, trunk of ptena morphant. G-J: Forty-eight hpf, in situ hybridization using myoD probe. G: Wild type embryo. H: ptena morphant. I: Tail of wild type embryo, dorsal view. J: Tail of ptena morphant, dorsal view. K-P: Forty-eight hpf, in situ hybridization using VE-cadherin probe. K: Wild type embryo. L: ptena morphant. M: Tail of wild type embryo. N: Tail of ptena morphant. O: Four dpf, wild type embryo. P: Four dpf, ptena morphant. Scale bars: A-D, G, H, K, L, O, P = 250 μm; E, F, I, J, M, N = 50μm.

Effect of ptena-MO1 morpholino on zebrafish inner ear development. All panels are lateral views of the otic vesicle with anterior to the left. A: Twenty-four hpf, wild type embryo. B-D: Twenty-four hpf, ptena morphants. E: Forty-eight hpf, wild type embryo. F: Forty-eight hpf, ptena morphant. G: Four dpf, wild type embryo. H-J: Four dpf, ptena morphants. K-T: Forty-eight hpf, in situ hybridization using ear-specific markers. K: pax2a, wild type embryo. L: pax2a, ptena morphant. M: otx1, wild type embryo. N: otx1, ptena morphant. O: starmaker, wild type embryo. P: starmaker, ptena morphant. Q: dfna5, wild type embryo. R: dfna5, ptena morphant. S: ncs-1a, wild type embryo. T: ncs1-a, ptena morphant. Scale bars in A-J = 25 μm. Arrowhead indicates site where epithelial pillars fail to fuse. Arrows point to abnormal tissue masses.

Effect of ptenb-MO1 morpholino on zebrafish development. All panels are lateral views of 48-hpf embryos with anterior to the left. A: Wild type embryo. B: ptenb morphant. C: Tail of wild type embryo. D: Tail of ptenb morphant. Scale bars = 250 μm.

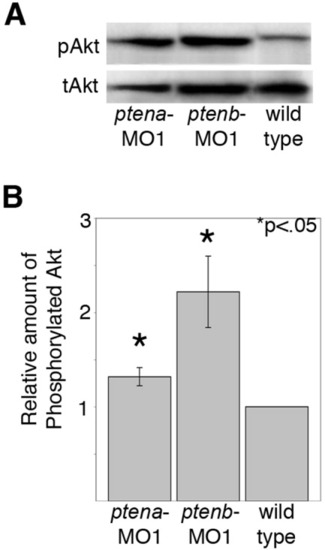

Lipid phosphatase activity of zebrafish pten genes. Lysates were prepared from wild type embryos as well as ptena and ptenb morphants at 48 hpf (30 embryos/group). Proteins were separated by SDS-PAGE and transferred to a nitrocellulose filter. Blots were probed with an anti-Akt antibody, stripped, and reprobed with an anti-phospho-Akt (pAkt) antibody. A: Western blot. B: Quantitation of bands by laser densitometry. The bars for ptena (n = 6 separate experiments) and ptenb (n = 4 separate experiments) represent the relative ratio of pAkt to total Akt (tAkt) compared to wild type embryos. The error bars represent the standard error of the mean. The asterisk indicates a statistically significant increase in the ratio of pAkt to tAkt (P < 0.05) as calculated by an unpaired Students t-test.
