ZFIN ID: ZDB-FIG-151009-30
Jia et al., 2015 - Mutation of kri1l causes definitive hematopoiesis failure via PERK-dependent excessive autophagy induction. Cell Research   25(8):946-62 Full text @ Cell Res.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Anatomical Terms:
Stage Range: Day 4 to Day 5

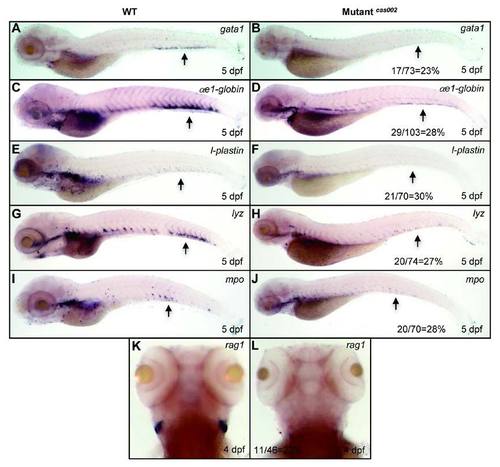

Fig. S2 WISH analysis of hematopoietic lineages at 5 dpf. WISH assays for the expression pattern of gata1, αe1-globin, l-plastin, lyz and mpo in WT and mutantcas002 embryos at 5 dpf. Black arrows indicate CHT regions. T-lymphocyte marker rag1 decreases at 4 dpf in mutantcas002. The number and percentage of het-het incross embryos with the in situ pattern in a clutch are listed at the bottom of the Mutantcas002 panels.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
gata1a WT standard conditions Day 5 post-vent region hematopoietic stem cell ISH
kri1cas002/cas002 standard conditions Day 5 post-vent region hematopoietic stem cell ISH
hbae1.1 WT standard conditions Day 5 post-vent region hematopoietic stem cell ISH
kri1cas002/cas002 standard conditions Day 5 post-vent region hematopoietic stem cell ISH
lcp1 WT standard conditions Day 5 post-vent region hematopoietic stem cell ISH
kri1cas002/cas002 standard conditions Day 5 post-vent region hematopoietic stem cell ISH
lyz WT standard conditions Day 5 post-vent region hematopoietic stem cell ISH
kri1cas002/cas002 standard conditions Day 5 post-vent region hematopoietic stem cell ISH
mpx WT standard conditions Day 5 post-vent region hematopoietic stem cell ISH
kri1cas002/cas002 standard conditions Day 5 post-vent region hematopoietic stem cell ISH
rag1 WT standard conditions Day 4 T cell ISH
kri1cas002/cas002 standard conditions Day 4 T cell ISH
Antibody Labeling Details No data available
Phenotype Details No data available
