Fig. S13

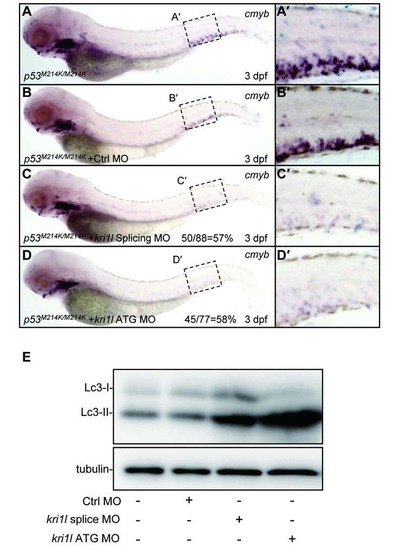

Inactivated p53 cannot rescue HSPCs depletion phenotype in kri1l morphants. (A-D) Expression level of cmyb in the CHT region was not restored in p53M214K/M214K mutants at 3 dpf with injection of kri1l splicing or ATG MOs at 1-cell stage. (A′-D′) details of cmyb expression in the enlarged CHT regions in A-D. (E) Immunoblotting analysis of Lc3 level in p53M214K/M214K mutants at 3 dpf, injected with control (Ctrl) and kri1l MO at 1-cell stage. |
Expression Data
Gene: | |
---|---|
Fish: | |
Knockdown Reagents: | |
Anatomical Term: | |
Stage: | Protruding-mouth |
Expression Detail
Antibody Labeling
Phenotype Data
Fish: | |
---|---|
Knockdown Reagents: | |
Observed In: | |
Stage: | Protruding-mouth |
Phenotype Detail
