Fig. 3

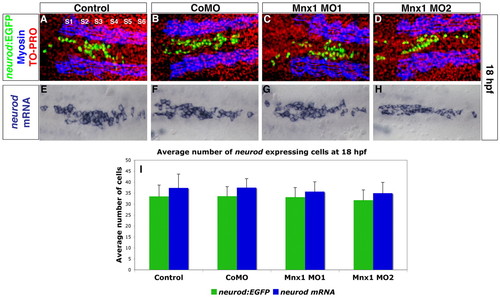

Endocrine progenitors are unaffected by Mnx1 knockdown. (A-D) Confocal images of Tg(neurod:EGFP) zebrafish embryos at 18 hpf. Whole-mount immunolabeling for GFP (green) and for myosin to label somites (blue); nuclear staining with TO-PRO-3 (red). Somites are numbered from anterior to posterior (S1-S6). (E-H) In situ hybridization for neurod at 18 hpf. (A,E) Uninjected controls; (B,F) control morphants; (C,G) Mnx1 MO1-injected embryos; (D,H) Mnx1 MO2-injected embryos. (I) Mean (± s.d.) neurod-expressing cells from two independent experiments and from a minimum of 17 embryos per group.

Expression Data
Genes:
Fish:
Knockdown Reagents:
Anatomical Terms:
Stage: 14-19 somites

Expression Detail
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
nl1Tgcontrol14-19 somitesIHC
nl1Tg + MO1-mnx1standard conditions14-19 somitesIHC
nl1Tg + MO2-mnx1standard conditions14-19 somitesIHC
nl1Tgcontrol14-19 somitesIHC
nl1Tg + MO1-mnx1standard conditions14-19 somitesIHC
nl1Tg + MO2-mnx1standard conditions14-19 somitesIHC
nl1Tgcontrol14-19 somitesISH
nl1Tg + MO1-mnx1standard conditions14-19 somitesISH
nl1Tg + MO2-mnx1standard conditions14-19 somitesISH
1 - 9 of 9
Show
Antibody Labeling
No data available
Phenotype Data
Fish:
Knockdown Reagents:
Observed In:
Stage: 14-19 somites

Phenotype Detail
