Fig. 4

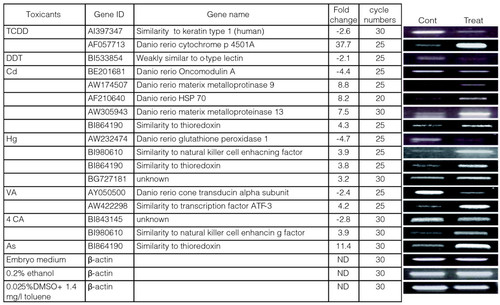

RT-PCR analysis confirms selected gene responses. Embryos were exposed to the indicated toxicants (500 ng/l TCDD; 15 mg/l DTT; 5 mg/l Cd; 60 μg/l MeHg; 50 mg/l VA; 50 mg/l 4CA; 79 mg/l As) or vehicle alone (embryo medium or 0.2% ethanol or 0.025% DMSO, 1.4 mg/l toluene) between 96 and 120 hpf. (a) cDNA was synthesized and subjected to PCR with primers specific for the selected genes indicated. Gene ID refers to the accession number in GenBank. The number of temperature cycles (cycle numbers) for every set of amplifications is indicated. The fold-change column summarizes the results from the microarray experiments for comparison with the RT-PCR results shown in (b). See legend of Figure 1 for details of treatments and controls. β-actin mRNA was used as a toxicant-insensitive reference. ND, not determined, as the actin gene response fell into the class of nonregulated genes in the microarray results.

Expression Data

Genes:	atf3 cyp1a gnat2 gpx1a krt1-11b mmp9 mmp13a prdx1 pvalb8 socs3b txnb
Fish:	WT
Conditions:	chemical treatment: 4-chloroaniline chemical treatment: arsenic oxide chemical treatment: cadmium dichloride chemical treatment: methylmercury chloride chemical treatment: 2,3,7,8-tetrachlorodibenzodioxine chemical treatment: valproic acid
Anatomical Term:	whole organism
Stage:	Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Genome Biol.
