Fig. 7

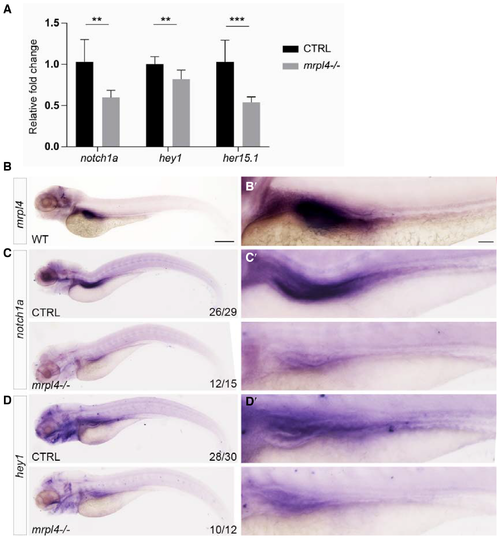

Zebrafish mRpL4 modulates expression of Notch signaling components during development A. Expression of notch1a, hey1, and her15.1 mRNA in mrpl4‐null larvae comparing to wild‐type control at 5 dpf as measured by quantitative PCR (three biological replicates for each genotype and three technical replicates for each sample). Statistical significance was tested using two‐tailed unpaired t‐test. Error bars represent ± SD; **P < 0.01, ***P < 0.001. B. Representative bright field image of 5 dpf wild‐type larva (n > 30) illustrated by in situ hybridization with a mrpl4 riboprobe. C. Representative bright field image of 5 dpf CTRL (n = 26/29) and mrpl4 mutant (n = 12/15) illustrated by in situ hybridization with a notch1a riboprobe. D. Representative bright field images of 5 dpf CTRL (n = 28/30) and mrpl4 mutant (n = 10/12) illustrated by in situ hybridization with a hey1 riboprobe.

Expression Data

Genes:	her15.1 hey1 mrpl4 notch1a
Fish:	WT mrpl4^{ouc501/ouc501}
Anatomical Terms:	intestinal bulb liver whole organism
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	mrpl4^{ouc501/ouc501}
Observed In:	intestinal bulb intestinal bulb Notch signaling pathway liver liver Notch signaling pathway whole organism
Stage:	Day 5

Phenotype Detail
