Figure 7

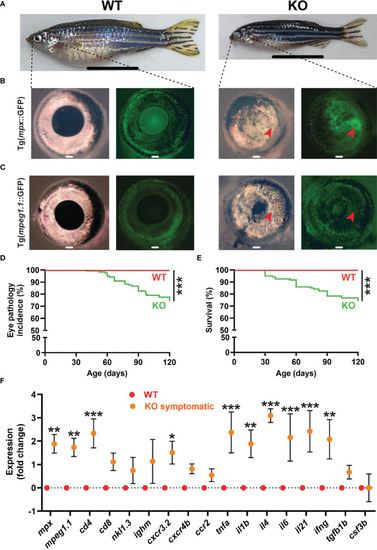

Eye pathology in socs3b KO zebrafish. Representative images of wildtype (WT, socs3b^wt/wt) and symptomatic knockout (KO, socs3b^mdu24/mdu24) zebrafish on either the Tg(mpx::GFP) (A, B) or Tg(mpeg1.1::GFP) (C) background, with close-up of right eye from respective zebrafish (B, C) under light (left panels) and fluorescence (right panels) microscopy, with scale bar representing 1 cm. Incidence of eye pathology (D) and overall survival (E) in WT and KO zebrafish (n = 25), with significance determined using a log-rank test. Gene expression analysis of WT and symptomatic KO adult eye showing mean and SEM (n = 6) (F). Normalized Cq values obtained from WT and KO eyes was used to test for significance using parametric t-tests (*** p < 0.001, ** p < 0.01, * p < 0.05).

Expression Data

Genes:	cxcr3.2 il1b il4 il6 il21 tnfa
Fish:	socs3b^mdu24/mdu24
Anatomical Term:	eye
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	socs3b^mdu24/mdu24 socs3b^mdu24/mdu24; gl22Tg/gl22Tg socs3b^mdu24/mdu24; i114Tg/i114Tg
Observed In:	eye eye macrophage eye neutrophil whole organism
Stage:	Adult

Phenotype Detail
