Fig. S7

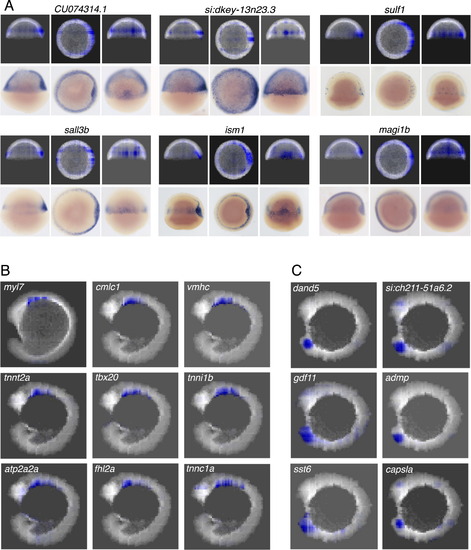

Identifying Genes Expressed in the Heart and Kupffer’s Vesicle, Related to Figure 7

(A) Additional novel genes with inferred expression patterns similar to gsc at shield stage, and validation by in situ hybridization.

(B) Projection images along LR axis for the 8 genes with expression patterns most similar to myl7 at 15 somites stage. All genes have a known role in heart development.

(C) Projections along LR axis for selected genes with expression patterns similar to dand5 at 10 somites stage. capsla, admp and gdf11 have been shown to be expressed in the Kupffer’s vesicle or, more broadly, in the tip of tail. Expression patterns for si:ch211-51a6.2 and sst6 are novel.

Expression Data

Genes:	admp arhgef37 atp2a2a capsla cmlc1 dand5 fhl2a gdf11 ism1 magi1b myh7 myl7 sall3b si:ch211-51a6.2 sst6 sulf1 tbx20 tnnc1a tnni1b tnnt2a zbed4l1
Fish:	WT
Anatomical Terms:	blastoderm heart primordium shield tail bud
Stage Range:	Shield to 14-19 somites
