Fig. 3

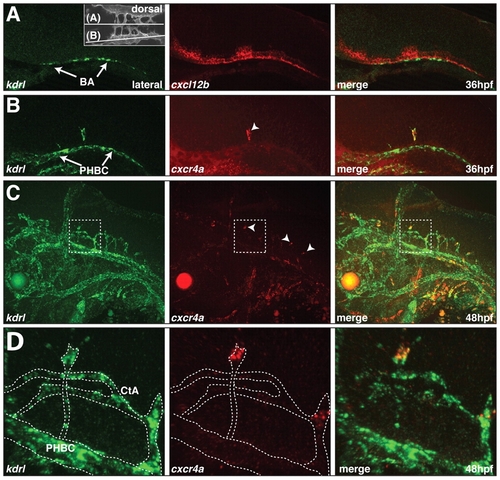

Expression of cxcl12b and cxcr4a in the zebrafish hindbrain. (A-D) Two-color fluorescent in situ hybridization showing the distribution of kdrl mRNA (green) and cxcl12b (A) and cxcr4a (B-D) mRNA (red). Lateral views, anterior to the left. (A) cxcl12b and kdrl expression at 36 hpf. Inset indicates the plane of view in A and B. (B) cxcr4a and kdrl expression at 36 hpf. Arrowhead indicates a single cxcr4a-expressing CtA sprout. (C) cxcr4a and kdrl expression at 48 hpf. Arrowheads indicate tip cells of CtA sprouts expressing cxcr4a. (D) Enlargement of the boxed area in C. The kdrl-positive endothelial cells are outlined.

Expression Data

Genes:	cxcl12b cxcr4a kdrl
Fish:	WT
Anatomical Terms:	basilar artery blood vessel endothelium central artery blood vessel endothelium central artery endothelial tip cell endothelial tip cell hindbrain ventro-medial region primordial hindbrain channel blood vessel endothelium
Stage Range:	Prim-25 to Long-pec
