Fig. S8
- ID
- ZDB-FIG-110428-23
- Publication
- Bussmann et al., 2011 - Arterial-venous network formation during brain vascularization involves hemodynamic regulation of chemokine signaling
- Other Figures
- (all 14)
- All Figure Page
- Back to All Figure Page

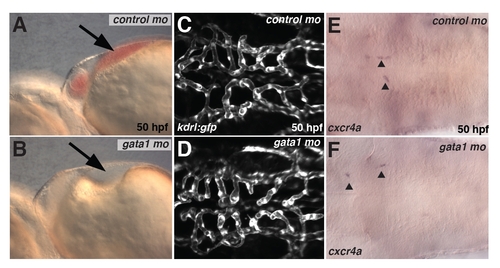

Loss of erythrocytes does not affect hindbrain vascular patterning. (A,B) Brightfield image of embryos injected with control MO (A) or gata1 MO (B) at 50 hpf. Note the absence of erythrocytes in the heart region in gata1 MO-injected but not control MO-injected embryos (arrow). (C,D) Maximum projections of confocal z-stacks of kdrl:gfp transgenic embryos at 50 hpf injected with control MO (C) or gata1 MO (D) at 50 hpf. (E,F) Expression of cxcr4a in control MO-injected embryos (E) and gata1 MO-injected embryos (F). |
