Fig. 4

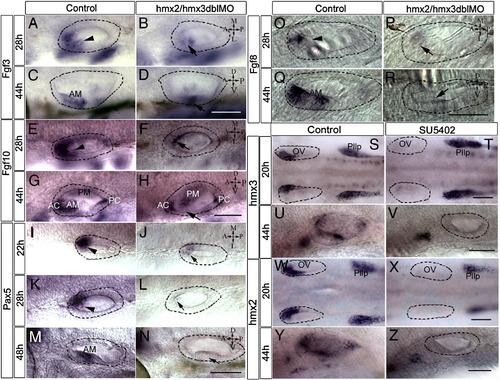

Expression of fgf3, fgf8, fgf10, and pax5 in hmx2/hmx3 morphants and of hmx2 and hmx3 in SU5402-treated embryos. All images are anterior to the left, and orientations are indicated. Dorsal view at 28 hpf and lateral view at 44 hpf. Otic vesicle is highlighted with a dotted line. fgf3 ( A, C) control, (B, D) morphant; fgf10 (E, G) control, (F, H) morphants; fgf8 ( O, Q) control, ( P, R) morphants; pax5 (I, K, M) control, (J, L, N) morphants. Dorsal view in panels S–Z. Embryos treated in 5% DMSO with or without SU5402 from 14 to 21 hpf (S, T, W, X) or 24 s to 44 hpf (U, V, Y, Z). hmx3 (S–V); hmx2 (W–Z). Arrowhead indicates the normal expression, and arrow indicates reduced signals. Scale bar: 50 μm. Abbreviations: OV, otic vesicle; Pllp, posterior lateral line primordium; AM, anterior maculae; PM, posterior maculae; AC, anterior cristae; PC, posterior cristae.
