ZFIN ID: ZDB-FIG-090915-28
Maves et al., 2009 - Pbx acts with Hand2 in early myocardial differentiation. Developmental Biology   333(2):409-418 Full text @ Dev. Biol.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Knockdown Reagents:
Anatomical Terms:
Stage Range: 10-13 somites to 20-25 somites

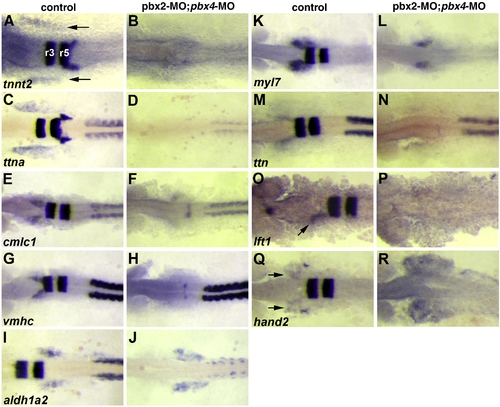

Fig. 2 Validation of microarray-identified Pbx-dependent heart genes. (A–R) RNA in situ expression of genes from Table 1 in (A, C, E, G, I, K, M, O, Q) wild-type control or (B, D, F, H, J, L, N, P, R) pbx2-MO; pbx4-MO embryos. (A–D) are at 10 somite stage (10s). (E–N,Q–R) are at 18s. (O–P) are at 20s to achieve more robust expression of lft1 in controls. krox-20, labeled in hindbrain rhombomeres r3 and r5 in (A), is included in all in situs to control for loss of Pbx. The wild-type heart primordium expression domains of tnnt2, ttna, cmlc1, vmhc, myl7, lft1 and hand2 are just anterior-lateral to r3 krox-20 expression (arrows in A, O, Q). n  ≥ 10 for each marker in control or pbx2-MO; pbx4-MO. Embryos are shown in dorsal view, anterior towards the left.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
aldh1a2 AB control 14-19 somites lateral plate mesoderm ISH
AB + MO1-pbx2 + MO2-pbx2 + MO2-pbx4 + MO3-pbx4 standard conditions 14-19 somites lateral plate mesoderm ISH
cmlc1 AB control 14-19 somites heart primordium ISH
14-19 somites somite ISH
AB + MO1-pbx2 + MO2-pbx2 + MO2-pbx4 + MO3-pbx4 standard conditions 14-19 somites heart primordium ISH
14-19 somites somite ISH
hand2 AB control 20-25 somites heart primordium ISH
20-25 somites ventral mesoderm ISH
AB + MO1-pbx2 + MO2-pbx2 + MO2-pbx4 + MO3-pbx4 standard conditions 20-25 somites heart primordium ISH
20-25 somites ventral mesoderm ISH
lft1 AB control 20-25 somites forebrain ISH
20-25 somites heart rudiment ISH
20-25 somites notochord ISH
AB + MO1-pbx2 + MO2-pbx2 + MO2-pbx4 + MO3-pbx4 standard conditions 20-25 somites forebrain ISH
20-25 somites heart rudiment ISH
20-25 somites notochord ISH
myh7 AB control 14-19 somites heart primordium ISH
14-19 somites somite ISH
AB + MO1-pbx2 + MO2-pbx2 + MO2-pbx4 + MO3-pbx4 standard conditions 14-19 somites heart primordium ISH
14-19 somites somite ISH
myl7 AB control 14-19 somites heart primordium ISH
AB + MO1-pbx2 + MO2-pbx2 + MO2-pbx4 + MO3-pbx4 standard conditions 14-19 somites heart primordium ISH
tnnt2a AB control 10-13 somites heart primordium ISH
AB + MO1-pbx2 + MO2-pbx2 + MO2-pbx4 + MO3-pbx4 standard conditions 10-13 somites heart primordium ISH
ttn.2 AB control 10-13 somites heart primordium ISH
10-13 somites somite ISH
AB + MO1-pbx2 + MO2-pbx2 + MO2-pbx4 + MO3-pbx4 standard conditions 10-13 somites heart primordium ISH
10-13 somites somite ISH
Antibody Labeling Details No data available
Phenotype Details No data available
