Fig. 5

ID
ZDB-IMAGE-220904-14
Source
Figures for Cao et al., 2022
Figure Caption

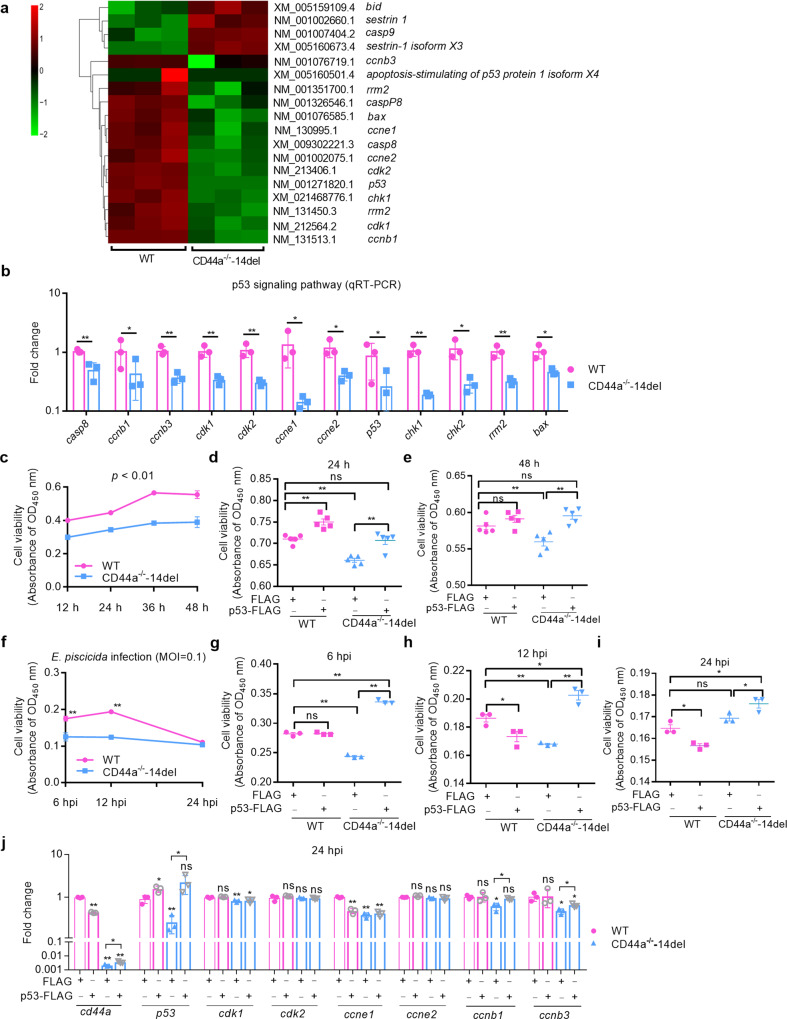

Fig. 5 CD44a deficiency inhibits cell growth and survival.

a DEGs involved in p53 signaling pathway at 24 hpi by RNAseq analysis of mRNA expression levels in the WT and CD44a−/−-14del zebrafish larvae infected with E. piscicida. b Validation of DEGs involved in p53 signaling pathway at 24 hpi by qRT-PCR. c Cell viability analysis of the WT and CD44a−/−-14del cells in the absence of infection. The cells were collected at 12, 24, 36 and 48 h. d, e Cell viability analysis of the WT and CD44a−/−-14del cells with or without the overexpression of p53. The cells were collected at 24 h (d) and 48 h (e). f Cell viability analysis of the WT and CD44a−/−-14del cells infected with E. piscicida. The cells were collected at 6, 12 and 24 hpi. gi Cell viability analysis of the WT and CD44a−/−-14del cells with or without the overexpression of p53 following the E. piscicida infection. The cells were collected at 6 hpi (g), 12 hpi (h) and 24 hpi (i). j mRNA levels of CD44a and many genes involved in p53 signaling pathway in the WT and CD44a−/−-14del zebrafish with or without the overexpression of p53 following the E. piscicida infection. The cells were collected at 24 hpi. Data are presented as mean values ± SD (n = 3) and p values by Student’s t test are shown in bj. *p < 0.05, **p < 0.01; ns not significant.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Commun Biol
