Fig. 5
|
Figure Caption
Fig. 5

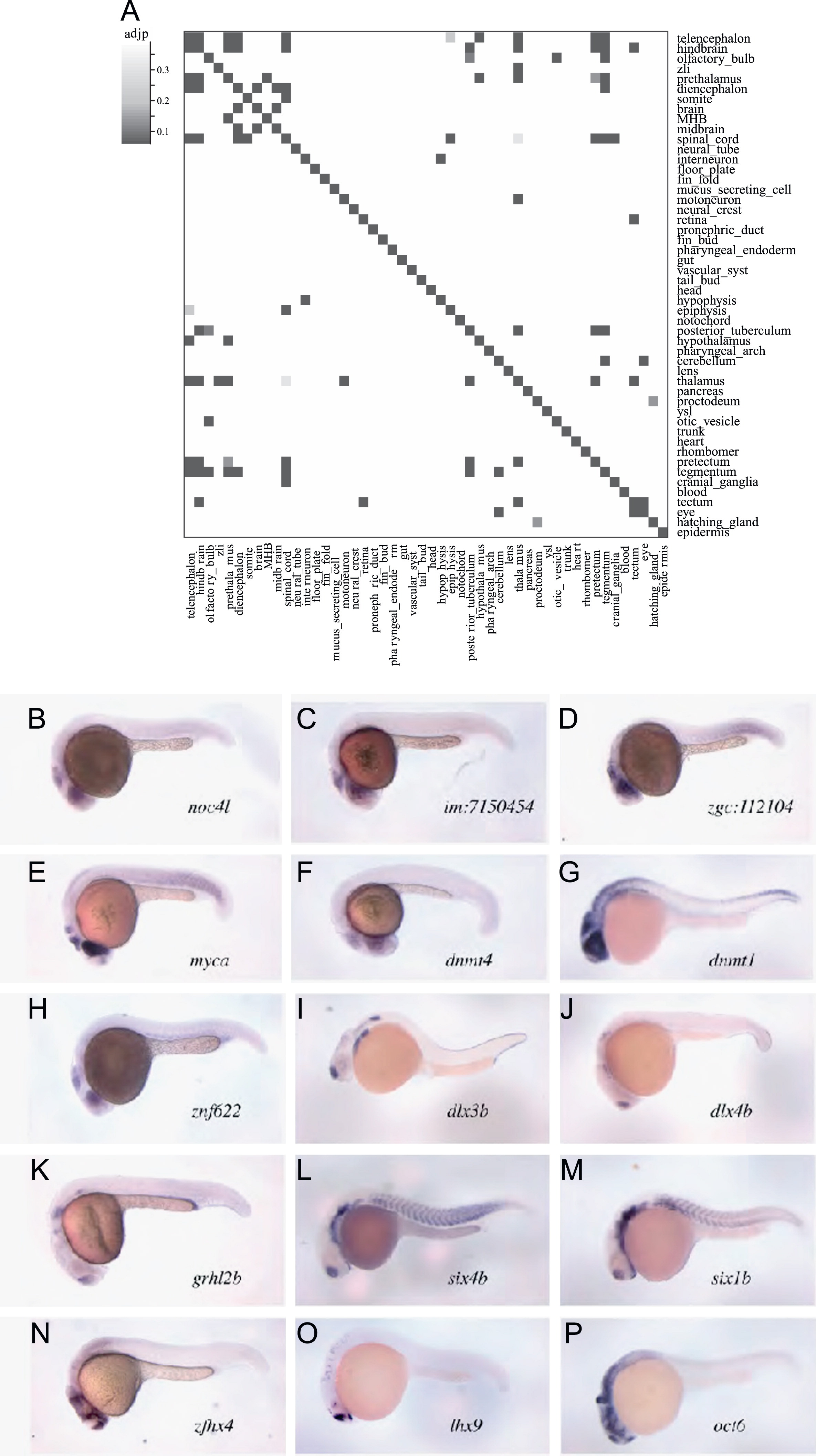

Correlation of co-expressed TRs. (A) Heat map of adjusted p-values from Pearson′s Chi-squared test showing significantly co-expressed TRs. Correlation of co-expression at 24 hpf is found mainly for neuronal regions (adjp: adjusted p-value). Example of in situ expression for TRs co-expressed in the retina and tectum (B–H), sensory placodes (I–M) or telencephalon, hypothalamus, thalamus and hindbrain (N–P). MHB: midbrain–hindbrain boundary.
