Fig. 5

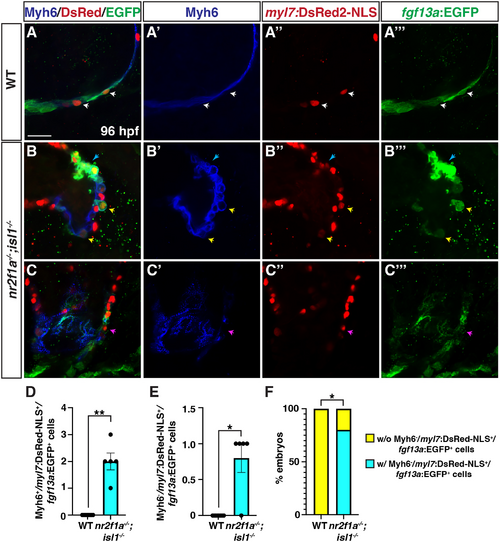

Co-expression of cardiomyocyte markers with fgf13a:EGFP in nr2f1a;isl1 mutant hearts. (A-C‴) Optical sections of the venous pole of wild-type and nr2f1a^−/−;isl1^−/− hearts at 96 hpf stained for Myh6 (blue), myl7:DsRed2-NLS (red) and fgf13a:EGFP (green). (A-A‴) Myh6⁺/myl7:DsRed2-NLS⁺/fgf13a:EGFP⁺ cells (pacemaker cardiomyocytes) in wild-type heart (white arrows). (B-B‴) Individual Myh6⁺/myl7:DsRed2-NLS⁺/fgf13a:EGFP⁺ cells in nr2f1a^−/−;isl1^−/− heart (yellow arrows). (B-B‴) Myh6,sup>+/myl7:DsRed2-NLS⁺/fgf13a:EGFP⁺ AV node cardiomyocytes in nr2f1a^−/−;isl1^−/− heart (blue arrows). (C-C‴) Myh6⁻/myl7:DsRed2-NLS⁺/fgf13a:EGFP⁺ cells in nr2f1a^−/−;isl1^−/− heart (magenta arrows). Wild type (n=8) and nr2f1a^−/−;isl1^−/− (n=5). Scale bar: 10 μm. (D,E) Quantification of distinct Myh6⁺/myl7:DsRed2-NLS⁺/fgf13a:EGFP⁺ and Myh6⁻/myl7:DsRed2-NLS⁺/fgf13a:EGFP⁺ cells in wild-type and nr2f1a^−/−;isl1^−/− embryos. (D) *P=0.0032; (E) **P=0.0161 (two-tailed Welch's t-test). (F) Proportion of embryos with at least one Myh6⁻/myl7:DsRed2-NLS⁺/fgf13a:EGFP⁺ cell. *P=0.007 (Fisher's exact test).
