FIGURE 4

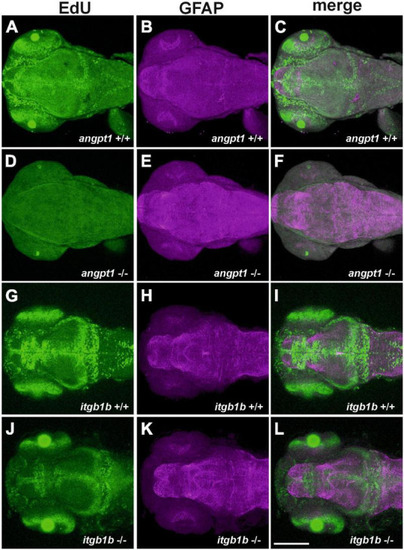

Decreased proliferation and increased gfap intensity in angpt1^–/– and itgb1b^–/– larvae. Maximum intensity projections of confocal z-stack images were made by immunostaining GFAP following the EdU proliferation assay in 3-dpf genotyped larvae. EdU labeling results shown in (A)angpt1^+/+(D)angpt1^–/–(G)itgb1b^+/+ and (J)itgb1b^–/– larval brains. gfap-immunoreactivity results shown in (B)angpt1^+/+(E)angpt1^–/–(H)itgb1b^+/+ and (K)itgb1b^–/– larval brains. The merge images of Edu-labeling and gfap-positive are shown in (C)angpt1^+/+(F)angpt1^–/–(I)itgb1b^+/+ and (L)itgb1b^–/– larval brains. Proliferating cells are indicated in green, and gfap-positive signals are in magenta. N = 5 per genotyped group. Scale bars are 200 μm.

Expression Data

Gene:	gfap
Antibody:	zrf-1
Fish:	WT angpt1^{sa14264/sa14264} itgb1b^mi371/mi371
Anatomical Terms:	forebrain hindbrain
Stage:	Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	angpt1^{sa14264/sa14264} itgb1b^mi371/mi371
Observed In:	brain proliferative region forebrain hindbrain
Stage:	Protruding-mouth

Phenotype Detail
