Fig. 1

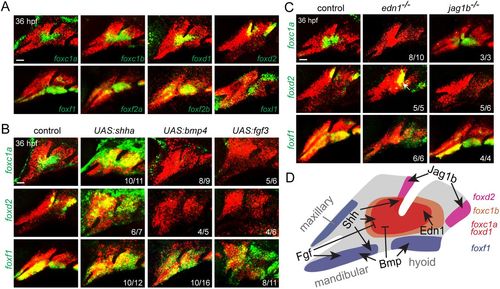

Combinatorial signaling establishes distinct Fox expression domains. (A) In situ hybridization at 36?hpf shows expression of Fox genes (green) relative to dlx2a⁺ CNCs (red) of the first two arches. (B) Expression of foxc1a, foxd2 and foxf1 (green) relative to dlx2a⁺ CNCs (red) upon misexpression of Shha, Bmp4 or Fgf3. Embryos doubly transgenic for hsp70l:Gal4 and UAS:shha, UAS:bmp4 or UAS:fgf3 were subjected to heat shock induction from 20 to 24?hpf and then fixed at 36?hpf for analysis. (C) Expression of foxc1a, foxd2 and foxf1 (green) relative to dlx2a⁺ CNCs (red) in edn1 or jag1b mutants versus sibling controls. Numbers denote proportions of embryos with displayed patterns. Scale bars: 25??m. (D) Summary of positive and negative inputs on Fox expression in the first two arches.

Expression Data

Genes:	dlx2a foxc1a foxc1b foxd1 foxd2 foxf1 foxf2a foxf2b foxl1
Fish:	WT edn1^{tf216b/tf216b} jag1b^b1105/b1105 el137Tg; kca4Tg el49Tg; kca4Tg el688Tg; kca4Tg
Condition:	heat shock
Anatomical Terms:	pharyngeal arch 1 pharyngeal arch 1 cranial neural crest pharyngeal arch 2 pharyngeal arch 2 cranial neural crest
Stage:	Prim-25
