ZFIN ID: ZDB-FIG-140522-7
Nissim et al., 2014 - Prostaglandin E2 regulates liver versus pancreas cell-fate decisions and endodermal outgrowth. Developmental Cell   28(4):423-437 Full text @ Dev. Cell
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Conditions:
Knockdown Reagents:
Anatomical Terms:
Stage Range: Protruding-mouth to Day 4
PHENOTYPE:
Fish:
Conditions:
Knockdown Reagents:
Observed In:
Stage Range: Protruding-mouth to Day 4

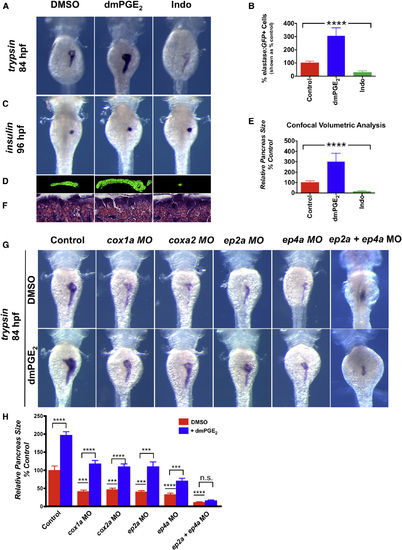

Fig. 2 PGE2 Affects Embryonic Pancreas Outgrowth (A) In situ hybridization for trypsin, an exocrine pancreas-specific marker, following exposure to dmPGE2 or Indo reveals that embryonic pancreas size is regulated by PGE2. dmPGE2 increases exocrine pancreas size (57.6% embryos with an enlarged pancreas; n = 38/66), whereas Indo diminishes exocrine pancreas size (70.6% embryos with a smaller pancreas; n = 36/51). Dorsal view. (B) FACS quantification of GFP+ exocrine pancreas cells in elastase:GFP embryos at 96 hpf following exposure to dmPGE2 or Indo. dmPGE2 increases and Indo decreases the relative number of exocrine pancreas cells. (Data are represented as mean ± SEM; ****significant across treatment groups, ANOVA, p < 0.0001.)

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
GFP zf578Tg control Day 4 exocrine pancreas IFL
zf578Tg chemical treatment: prostaglandin E2 Day 4 exocrine pancreas IFL
zf578Tg chemical treatment: indometacin Day 4 exocrine pancreas IFL
ins WT control Day 4 endocrine pancreas ISH
WT chemical treatment: prostaglandin E2 Day 4 endocrine pancreas ISH
WT chemical treatment: indometacin Day 4 endocrine pancreas ISH
prss1 WT control Protruding-mouth endocrine pancreas ISH
WT chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas ISH
WT chemical treatment: indometacin Protruding-mouth exocrine pancreas ISH
WT + MO1-ptger2a + MO1-ptger4a + MO2-ptger2a + MO2-ptger4a control Protruding-mouth exocrine pancreas ISH
WT + MO1-ptger2a + MO1-ptger4a + MO2-ptger2a + MO2-ptger4a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas ISH
WT + MO1-ptger2a + MO2-ptger2a control Protruding-mouth exocrine pancreas ISH
WT + MO1-ptger2a + MO2-ptger2a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas ISH
WT + MO1-ptger4a + MO2-ptger4a control Protruding-mouth exocrine pancreas ISH
WT + MO1-ptger4a + MO2-ptger4a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas ISH
WT + MO1-ptgs1 + MO2-ptgs1 control Protruding-mouth exocrine pancreas ISH
WT + MO1-ptgs1 + MO2-ptgs1 chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas ISH
WT + MO1-ptgs2a + MO2-ptgs2a control Protruding-mouth exocrine pancreas ISH
WT + MO1-ptgs2a + MO2-ptgs2a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas ISH
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
WT chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas prss1 expression increased distribution, abnormal
Protruding-mouth exocrine pancreas increased size, abnormal
WT chemical treatment: indometacin Protruding-mouth exocrine pancreas prss1 expression decreased distribution, abnormal
Protruding-mouth exocrine pancreas decreased size, abnormal
WT + MO1-ptger2a + MO1-ptger4a + MO2-ptger2a + MO2-ptger4a control Protruding-mouth exocrine pancreas prss1 expression decreased distribution, abnormal
Protruding-mouth exocrine pancreas decreased size, abnormal
WT + MO1-ptger2a + MO1-ptger4a + MO2-ptger2a + MO2-ptger4a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas prss1 expression amount, ameliorated
Protruding-mouth exocrine pancreas decreased size, abnormal
WT + MO1-ptger2a + MO2-ptger2a control Protruding-mouth exocrine pancreas prss1 expression decreased distribution, abnormal
Protruding-mouth exocrine pancreas decreased size, abnormal
WT + MO1-ptger2a + MO2-ptger2a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas prss1 expression amount, ameliorated
Protruding-mouth exocrine pancreas size, ameliorated
WT + MO1-ptger4a + MO2-ptger4a control Protruding-mouth exocrine pancreas prss1 expression decreased distribution, abnormal
Protruding-mouth exocrine pancreas decreased size, abnormal
WT + MO1-ptger4a + MO2-ptger4a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas prss1 expression amount, ameliorated
Protruding-mouth exocrine pancreas size, ameliorated
WT + MO1-ptgs1 + MO2-ptgs1 control Protruding-mouth exocrine pancreas prss1 expression decreased distribution, abnormal
Protruding-mouth exocrine pancreas decreased size, abnormal
WT + MO1-ptgs1 + MO2-ptgs1 chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas prss1 expression amount, ameliorated
Protruding-mouth exocrine pancreas size, ameliorated
WT + MO1-ptgs2a + MO2-ptgs2a control Protruding-mouth exocrine pancreas prss1 expression decreased distribution, abnormal
Protruding-mouth exocrine pancreas decreased size, abnormal
WT + MO1-ptgs2a + MO2-ptgs2a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas prss1 expression amount, ameliorated
Protruding-mouth exocrine pancreas size, ameliorated
npas4ls5; gz15Tg chemical treatment: prostaglandin E2 Day 4 exocrine pancreas cell increased amount, abnormal
npas4ls5; gz15Tg chemical treatment: indometacin Day 4 exocrine pancreas cell decreased amount, abnormal
zf578Tg chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas increased size, abnormal
Day 4 exocrine pancreas GFP expression increased distribution, abnormal
Day 4 exocrine pancreas increased size, abnormal
zf578Tg chemical treatment: indometacin Day 4 exocrine pancreas GFP expression decreased distribution, abnormal
Day 4 exocrine pancreas decreased size, abnormal
zf578Tg + MO1-ptger2a + MO1-ptger4a + MO2-ptger2a + MO2-ptger4a control Protruding-mouth exocrine pancreas decreased size, abnormal
zf578Tg + MO1-ptger2a + MO1-ptger4a + MO2-ptger2a + MO2-ptger4a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas decreased size, abnormal
zf578Tg + MO1-ptger2a + MO1-ptgs2a control Protruding-mouth exocrine pancreas decreased size, abnormal
zf578Tg + MO1-ptger2a + MO1-ptgs2a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas size, ameliorated
zf578Tg + MO1-ptger4a + MO2-ptger4a control Protruding-mouth exocrine pancreas decreased size, abnormal
zf578Tg + MO1-ptger4a + MO2-ptger4a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas size, ameliorated
zf578Tg + MO1-ptgs1 + MO2-ptgs1 control Protruding-mouth exocrine pancreas decreased size, abnormal
zf578Tg + MO1-ptgs1 + MO2-ptgs1 chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas size, ameliorated
zf578Tg + MO1-ptgs2a + MO2-ptgs2a control Protruding-mouth exocrine pancreas decreased size, abnormal
zf578Tg + MO1-ptgs2a + MO2-ptgs2a chemical treatment: prostaglandin E2 Protruding-mouth exocrine pancreas size, ameliorated
