Fig. 5

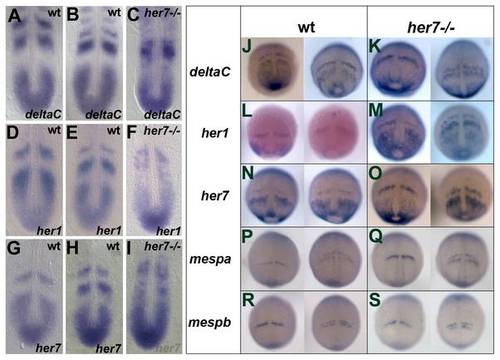

Expression analysis of segmentation genes in her7hu2526 mutant embryos.

In situ hybridisation analysis of deltaC, her1 and her7 in wild type (A, B and D, E and G, H, respectively) and her7hu2526 mutants (C, F, I, respectively) at 10–12 somite stage and between 90% epiboly and bud stage (J, L, N for wild type expression patterns and K, M, O for respective expression patterns in the mutant embryos). Expression patterns of deltaC, her1 and her7 at 10–12 somite stage are disrupted in the mutant appear unperturbed between 90% epiboly and bud stage. Expression patterns of mespa and mespb are not affected in the her7hu2526 mutant between 90% epiboly and bud stage (Q and S, respectively) and similar to the wild type (P and R, respectively).

Expression Data
Genes:
Fish:
Anatomical Terms:
Stage Range: 90%-epiboly to 10-13 somites
