Fig. 2

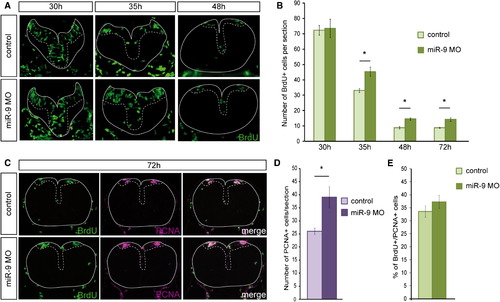

miR-9 Depletion Increases Proliferation along the Hindbrain VZ at Late Stages (A) Transverse sections showing short pulse BrdU labeling of control and miR-9 MO-injected embryos at 30 hpf, 35 hpf, and 48 hpf. (B) Number of BrdU-positive cells per 5-μm section at 30 (n = 4 embryos per condition), 35 (n = 6), 48 (n = 9), 72 hpf (n = 9) in control or injected embryos. (C) Transverse sections showing BrdU (green) and PCNA (purple) immunostaining after short pulse labeling at 72 hpf (n = 9). (D) Number of PCNA-positive cells per 5-μm section. (E) Proportion of BrdU-positive cells among PCNA-positive cells. The VZ is highlighted with a dotted line. p < 0.01. Values are presented as mean ± SEM. See also Figure S2.

Expression Data
Gene:
Fish:
Knockdown Reagent:
Anatomical Term:
Stage: Protruding-mouth

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagent:
Observed In:
Stage Range: Long-pec to Protruding-mouth

Phenotype Detail
