FIGURE

Fig. S3

ID

ZDB-FIG-110224-17

Publication

Dal-Pra et al., 2011 - FoxA transcription factors are essential for the development of dorsal axial structures

Other Figures

All Figure Page

Back to All Figure Page

Fig. S3

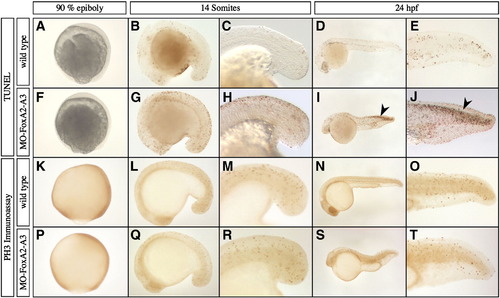

Analysis of cell proliferation and apoptosis in FoxA2 and FoxA3 morphants. (A–J) Analysis of apoptosis by TUNEL assay at 90% epiboly, 14 somites and 24 hpf. The pattern of apoptotic cells in FoxA2–FoxA3 morphants is similar to wild-type embryos at every stage, except in the dorsal neural tube at 24 hpf, that shows strong apoptosis (arrowheads in I and J). (K–T) Analysis of cellular proliferation by phospho-histone H3 immunoassay at 90% epiboly, 14 somites and 24 hpf. FoxA2–FoxA3 morphants are similar to wild-type embryos at all stages. (A–T) Lateral views, anterior to the left (except in A, F, K, and P with animal pole up). (C, E, H, J, M, O, R, and T) Magnification of the tail region.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-foxa2 + MO1-foxa3 + MO2-foxa3
Knockdown Reagents:	MO1-foxa2 MO1-foxa3 MO2-foxa3
Observed In:	apoptotic process cell population proliferation
Stage Range:	90%-epiboly to Prim-5

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 350(2), Dal-Pra, S., Thisse, C., and Thisse, B., FoxA transcription factors are essential for the development of dorsal axial structures, 484-495, Copyright (2011) with permission from Elsevier. Full text @ Dev. Biol.
