FIGURE

Fig. S6

ID

ZDB-FIG-110224-20

Publication

Dal-Pra et al., 2011 - FoxA transcription factors are essential for the development of dorsal axial structures

Other Figures

All Figure Page

Back to All Figure Page

Fig. S6

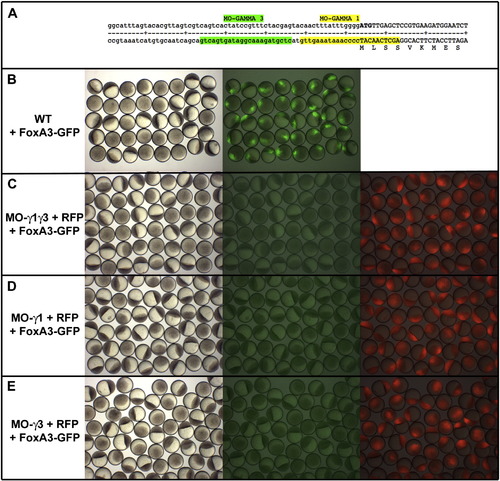

FoxA3 morpholinos efficiently block translation of FoxA3-GFP fusion protein. (A) Sequence of the 5′UTR and of the region coding for the Nt part of the FoxA3 protein showing the position of FoxA3 morpholinos, MO-γ1 (that covers the initiation of translation) and MO- γ3 (two nucleotides upstream of MO- γ1 in the 5′UTR part of the RNA). (B) Injection of 50 pg of RNA coding for a FoxA3-GFP fusion protein at the 4 cell stage results in embryo displaying a strong fluorescence in the nucleus of one quarter of the cells. (C) Injection of 8 ng of both MO- γ1 and MO- γ3 as well as (D) 8 ng of MO- γ1 or (E) 8 ng of MO- γ3 abolish the translation of FoxA3-GFP fusion protein (central panels in C–E compared to right panel in A). Morpholinos have been injected with a RNA coding for a RFP used as control to show that all embryos observed are morphants (right panels in C–E).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 350(2), Dal-Pra, S., Thisse, C., and Thisse, B., FoxA transcription factors are essential for the development of dorsal axial structures, 484-495, Copyright (2011) with permission from Elsevier. Full text @ Dev. Biol.
