FIGURE

Fig. 3

ID

ZDB-FIG-050721-8

Publication

Qian et al., 2005 - Microarray analysis of zebrafish cloche mutant using amplified cDNA and identification of potential downstream target genes

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3

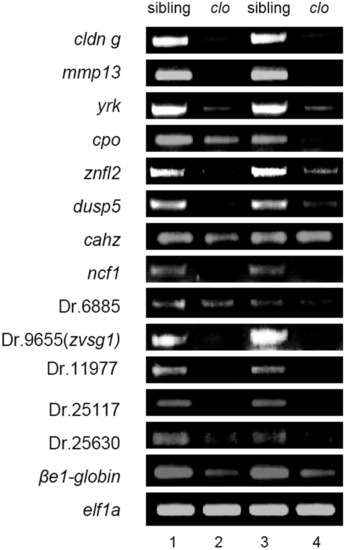

Verification of target clones by semiquantitative reverse transcriptase-polymerase chain reaction (RT-PCR). One microgram of total RNA sample (20 embryos each) derived from the wild-type sibling (lanes 1 and 3) and clo mutant embryos (lanes 2 and 4) were reverse transcribed and subjected to PCR analysis with specific primers corresponding to each of the perspective target genes. PCR products were electrophoresed on 1% agarose gel and stained with ethidium bromide. e1-globin and elf1a were used as internal controls.

Expression Data

Genes:	cahz cldng cpox dusp5 efna2a hbbe1.1 mmp13a.1 ncf1 nrros rhogb tmem254 wu:fe14d06 yrk znfl2a
Fish:	WT npas4l^s5
Anatomical Term:	unspecified
Stage:	14-19 somites

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
