ZFIN ID: ZDB-FIG-050721-7
Qian et al., 2005 - Microarray analysis of zebrafish cloche mutant using amplified cDNA and identification of potential downstream target genes. Developmental dynamics : an official publication of the American Association of Anatomists   233(3):1163-1172 Full text @ Dev. Dyn.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Anatomical Term:
Stage: 14-19 somites

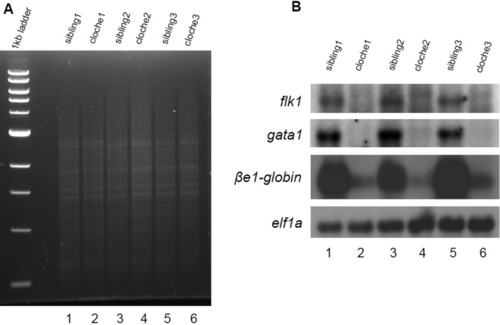

Fig. 2 Analysis of amplified cDNA quality. A: DNA electrophoresis analysis. A total of 100 ng of each amplified cDNAs derived from the single 18-somite clo homozygous mutant (lanes 2, 4, and 6) and wild-type or heterozygous sibling embryos (lanes 1, 3 and 5) was separated on 1% agarose gel. Ethidium bromide staining shows an evenly distributed smear of DNA in each lane. B: Virtual Northern analysis. cDNAs of A were transferred to a Hybone-N+ membrane and probed with digoxigenin-labeled flk1, gata1, e1-globin and actin. Whereas elf1a transcript was maintained at a similar level in all the samples, expression of flk1, gata1, and e1-globin were either absent or drastically reduced in the clo mutant embryos (lanes 2, 4, and 6).

Gene Expression Details
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
efna2a WT standard conditions 14-19 somites unspecified NB
npas4ls5 standard conditions 14-19 somites unspecified NB
gata1a WT standard conditions 14-19 somites unspecified NB
npas4ls5 standard conditions 14-19 somites Not Detected whole organism NB
hbbe1.1 WT standard conditions 14-19 somites unspecified NB
npas4ls5 standard conditions 14-19 somites unspecified NB
kdrl WT standard conditions 14-19 somites unspecified NB
npas4ls5 standard conditions 14-19 somites Not Detected whole organism NB
Antibody Labeling Details No data available
Phenotype Details No data available
