ZFIN Figure: Qian et al., 2005, Fig. 1

ZFIN ID: ZDB-FIG-050721-6

ZFIN ID: ZDB-FIG-050721-6

Qian et al., 2005 - Microarray analysis of zebrafish cloche mutant using amplified cDNA and identification of potential downstream target genes. Developmental dynamics : an official publication of the American Association of Anatomists 233(3):1163-1172 Full text @ Dev. Dyn.

ADDITIONAL FIGURES

EXPRESSION / LABELING:

Genes:	efna2a gata1a hbbe1.1 kdrl lmo2 tal1
Fish:	WT npas4l^s5
Anatomical Term:	unspecified
Stage:	14-19 somites

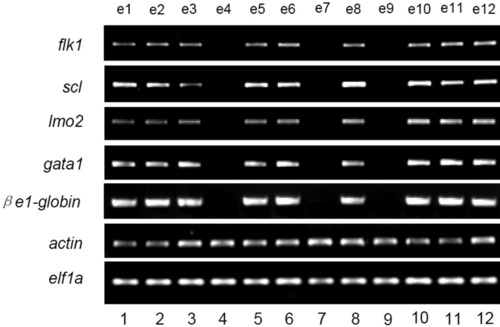

Fig. 1 Genotyping of the 18-somite clo homozygous and wild-type/heterozygous sibling embryos by semiquantitative reverse transcriptase-polymerase chain reaction (RT-PCR). Equal amount (1/10) of cDNA from the randomly selected single 18-somite embryo was subjected to semiquantitative PCR analysis with specific primers for zebrafish flk1, scl, lmo2, gata1, and e1-globin. actin and elf1a were used as control to indicate the amount of cDNA used. Lanes 4, 7, and 9 are clo mutants, whereas the other lanes (lanes 1, 2, 3, 5, 6, 8, 10, 11, and 12) represent wild-type or heterozygous sibling embryos.

Gene Expression Details

Gene	Fish	Conditions	Stage	Qualifier	Anatomy	Assay
efna2a	WT	standard conditions	14-19 somites		unspecified	RTPCR
	npas4l^s5	standard conditions	14-19 somites		unspecified	RTPCR
gata1a	WT	standard conditions	14-19 somites		unspecified	RTPCR
	npas4l^s5	standard conditions	14-19 somites	Not Detected	whole organism	RTPCR
hbbe1.1	WT	standard conditions	14-19 somites		unspecified	RTPCR
	npas4l^s5	standard conditions	14-19 somites	Not Detected	whole organism	RTPCR
kdrl	WT	standard conditions	14-19 somites		unspecified	RTPCR
	npas4l^s5	standard conditions	14-19 somites	Not Detected	whole organism	RTPCR
lmo2	WT	standard conditions	14-19 somites		unspecified	RTPCR
	npas4l^s5	standard conditions	14-19 somites	Not Detected	whole organism	RTPCR
tal1	WT	standard conditions	14-19 somites		unspecified	RTPCR
	npas4l^s5	standard conditions	14-19 somites	Not Detected	whole organism	RTPCR

Antibody Labeling Details No data available

Phenotype Details No data available
