ZFIN ID: ZDB-FIG-160630-24
Lovely et al., 2016 - Bmp signaling mediates endoderm pouch morphogenesis by regulating Fgf signaling in zebrafish. Development (Cambridge, England)   143(11):2000-11 Full text @ Development
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Anatomical Terms:
Stage Range: 10-13 somites to Prim-5

Fig. 1

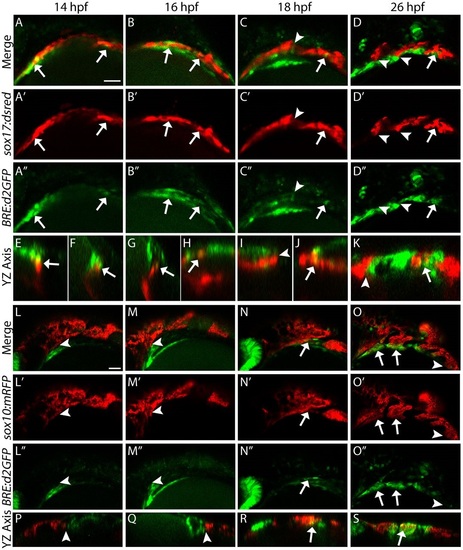

The reception of Bmp signaling is temporally distinct between the endoderm and CNCCs. (A-K) Confocal images of endoderm (sox17:dsred) and Bmp-responsive cells (BRE:d2GFP) at the indicated stages of zebrafish development. (E-K) Orthogonal (yz-axis) views of A (E,F), B (G,H), C (I,J) and D (K). (L-S) Confocal images of CNCCs (sox10:mRFP) and Bmp-responsive cells (BRE:d2GFP). (P-S) Orthogonal views of L-O. Arrows indicate overlap between transgene expression; arrowheads denote lack of overlap. The endoderm is Bmp responsive by 14hpf (A-A′′) and this overlap persists to 26hpf (B-D′′), but only in the most posterior cells. The ventral CNCCs do not become Bmp responsive until after 18hpf (L-S). (A-D′′,L-O′′) Lateral views, anterior to the left. Scale bars: 50┬Ám.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
d2EGFP mw30Tg ; s903Tg standard conditions 10-13 somites endoderm IFL
14-19 somites endoderm IFL
Prim-5 endoderm IFL
mw30Tg ; vu234Tg standard conditions 10-13 somites anatomical structure IFL
14-19 somites cranial neural crest cell IFL
Prim-5 cranial neural crest cell IFL
DsRed mw30Tg ; s903Tg standard conditions 10-13 somites endoderm IFL
14-19 somites endoderm IFL
Prim-5 endoderm IFL
mRFP mw30Tg ; vu234Tg standard conditions 10-13 somites cranial neural crest cell IFL
14-19 somites cranial neural crest cell IFL
Prim-5 cranial neural crest cell IFL
Antibody Labeling Details No data available
Phenotype Details No data available
