ZFIN ID: ZDB-FIG-120905-38
Bräutigam et al., 2011 - Vertebrate-specific glutaredoxin is essential for brain development. Proceedings of the National Academy of Sciences of the United States of America   108(51):20532-7 Full text @ Proc. Natl. Acad. Sci. USA
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Antibody:
Fish:
Knockdown Reagent:
Anatomical Terms:
Stage Range: 14-19 somites to Prim-5
PHENOTYPE:
Fish:
Knockdown Reagent:
Observed In:
Stage Range: 14-19 somites to Prim-5

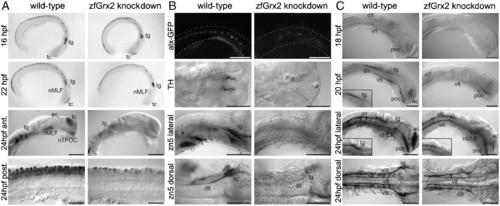

Fig. 2

Knockdown of zfGrx2 suppressed formation of a neuronal network. Morpholino-induced knockdown of zfGrx2 led to loss of early HuC/D positive neurons between 22 and 24 hpf (A). As demonstrated by different techniques, all tested neuronal subgroups were affected at 24 hpf: glutamatergic excitatory interneurons, dopaminergic neurons, and secondary motor neurons (B). Embryos lacking zfGrx2 were not able to develop an axonal scaffold (C). Ac, anterior commissure; dlt, dorsal longitudinal tract; nMLF, nucleus of the medial longitudinal fascicle; poc, posterior commissure; tg, trigeminal ganglion; vlt, ventral longitudinal tract. Scale bar, 50 µm.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
EGFP nns1Tg control 14-19 somites spinal cord neural tube neuron IFL
nns1Tg + MO1-glrx2 standard conditions 14-19 somites spinal cord neural tube neuron IFL
Antibody Labeling Details
Antibody Assay Fish Conditions Stage Anatomy
zn-5 IHC WT control Prim-5 secondary motor neuron
IHC WT + MO1-glrx2 standard conditions Prim-5 secondary motor neuron
Phenotype Details
Fish Conditions Stage Phenotype
WT + MO1-glrx2 standard conditions 14-19 somites - 26+ somites central nervous system has fewer parts of type white matter, abnormal
14-19 somites - 26+ somites central nervous system development disrupted, abnormal
14-19 somites - 26+ somites central nervous system projection neuron axonogenesis disrupted, abnormal
14-19 somites - 26+ somites neuron amount, normal
14-19 somites - 26+ somites neuron spatial pattern, normal
Prim-5 central nervous system has fewer parts of type white matter, abnormal
Prim-5 central nervous system development disrupted, abnormal
Prim-5 central nervous system projection neuron axonogenesis disrupted, abnormal
Prim-5 dopaminergic neuron decreased amount, abnormal
Prim-5 glutamatergic neuron decreased amount, abnormal
Prim-5 neuron decreased amount, abnormal
Prim-5 secondary motor neuron decreased amount, abnormal
nns1Tg + MO1-glrx2 standard conditions Prim-5 neuron decreased amount, abnormal
