ZFIN ID: ZDB-FIG-120810-55
Hutchinson et al., 2012 - Tbl3 regulates cell cycle length during zebrafish development. Developmental Biology   368(2):261-272 Full text @ Dev. Biol.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Antibody:
Fish:
Knockdown Reagents:
Anatomical Term:
Stage: Protruding-mouth
PHENOTYPE:
Fish:
Knockdown Reagents:
Observed In:
Stage: Protruding-mouth

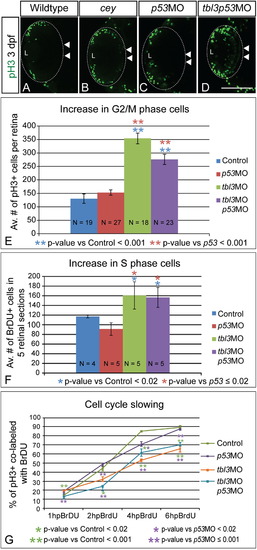

Fig. 6 Prolonged proliferative phase in retina results from slowing of the cell cycle Proliferation is increased in cey mutant retinas. At 3 dpf there are more pH3+ (G2/M) cells in cey mutants in the central retina (white arrowheads; B) as compared to wild-type (A). Injection of both tbl3 MO and p53 MO also results in an increase in pH3+ cells in the central retina (white arrowheads) at 3 dpf (D) as compared to a p53MO only control (C). Quantification shows that the increase in pH3+ cells is significant in both larvae injected with tbl3MO alone or tbl3MO co-injected with p53MO at 3 dpf (E). Control larvae were injected with phenol red. Whole Z-stacks of dorsal view retinas were projected and the number of pH3+ cells were counted and then averaged to determine the average number of mitotic cells at 3 dpf (E, see the “Methods” section for more details on quantification). Tbl3 morphants also have an increased number of cells in S-phase as compared to wild-type (F) indicating there are more proliferating cells at 3 dpf. The average number of BrdU positive cells in five lateral view sections was calculated for each retina (F, see the “Methods” section for more details). The progression of cells from S-phase to G2/M is slower in Tbl3 morphants than control embryos as is indicated by the smaller percentage of cells co-labeled with BrdU and anti-pH3 over a 6 h period of BrdU recovery (G). At 1 hpBrdU N=4, 8, 9, 8 for control, p53MO, tbl3MO, and tbl3p53MO, respectively. At 2 hpBrdU N=4, 4, 5, 5. At 4 hpBrdU N=7, 4, 4, 5. At 6 hpBrdU N=9, 11, 8, 6. Error bars in (E–G) represent standard error of the mean. Scale Bars are 130μm. (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.)

Gene Expression DetailsNo data available
Antibody Labeling Details
Antibody Assay Fish Conditions Stage Anatomy
Ab3-h3 IHC WT control Protruding-mouth retina
IHC WT standard conditions Protruding-mouth retina
IHC WT + MO1-tbl3 standard conditions Protruding-mouth retina
IHC WT + MO2-tbl3 standard conditions Protruding-mouth retina
IHC tbl3Df(Chr03:noxo1a,zgc:113100,sox8b,proza)cz26/cz26 standard conditions Protruding-mouth retina
Phenotype Details
Fish Conditions Stage Phenotype
WT + MO1-tbl3 standard conditions Protruding-mouth cell population proliferation increased occurrence, abnormal
Protruding-mouth M phase increased duration, abnormal
Protruding-mouth retina morphogenesis in camera-type eye delayed, abnormal
Protruding-mouth S phase increased duration, abnormal
WT + MO2-tbl3 standard conditions Protruding-mouth cell population proliferation increased occurrence, abnormal
Protruding-mouth M phase increased duration, abnormal
Protruding-mouth retina morphogenesis in camera-type eye delayed, abnormal
Protruding-mouth S phase increased duration, abnormal
tbl3Df(Chr03:noxo1a,zgc:113100,sox8b,proza)cz26/cz26 standard conditions Protruding-mouth cell population proliferation increased occurrence, abnormal
Protruding-mouth M phase increased duration, abnormal
Protruding-mouth retina morphogenesis in camera-type eye delayed, abnormal
Protruding-mouth S phase increased duration, abnormal
Acknowledgments:
ZFIN wishes to thank the journal Developmental Biology for permission to reproduce figures from this article. Please note that this material may be protected by copyright.

Reprinted from Developmental Biology, 368(2), Hutchinson, S.A., Tooke-Locke, E., Wang, J., Tsai, S., Katz, T., and Trede, N.S., Tbl3 regulates cell cycle length during zebrafish development, 261-272, Copyright (2012) with permission from Elsevier. Full text @ Dev. Biol.
