Fig. S2
- ID
- ZDB-IMAGE-070413-11
- Genes
- Publication
- Hsiao et al., 2007 - A Positive Regulatory Loop between foxi3a and foxi3b Is Essential for Specification and Differentiation of Zebrafish Epidermal Ionocytes
- All Figures
- Figures for Hsiao et al., 2007
|
Figure Caption

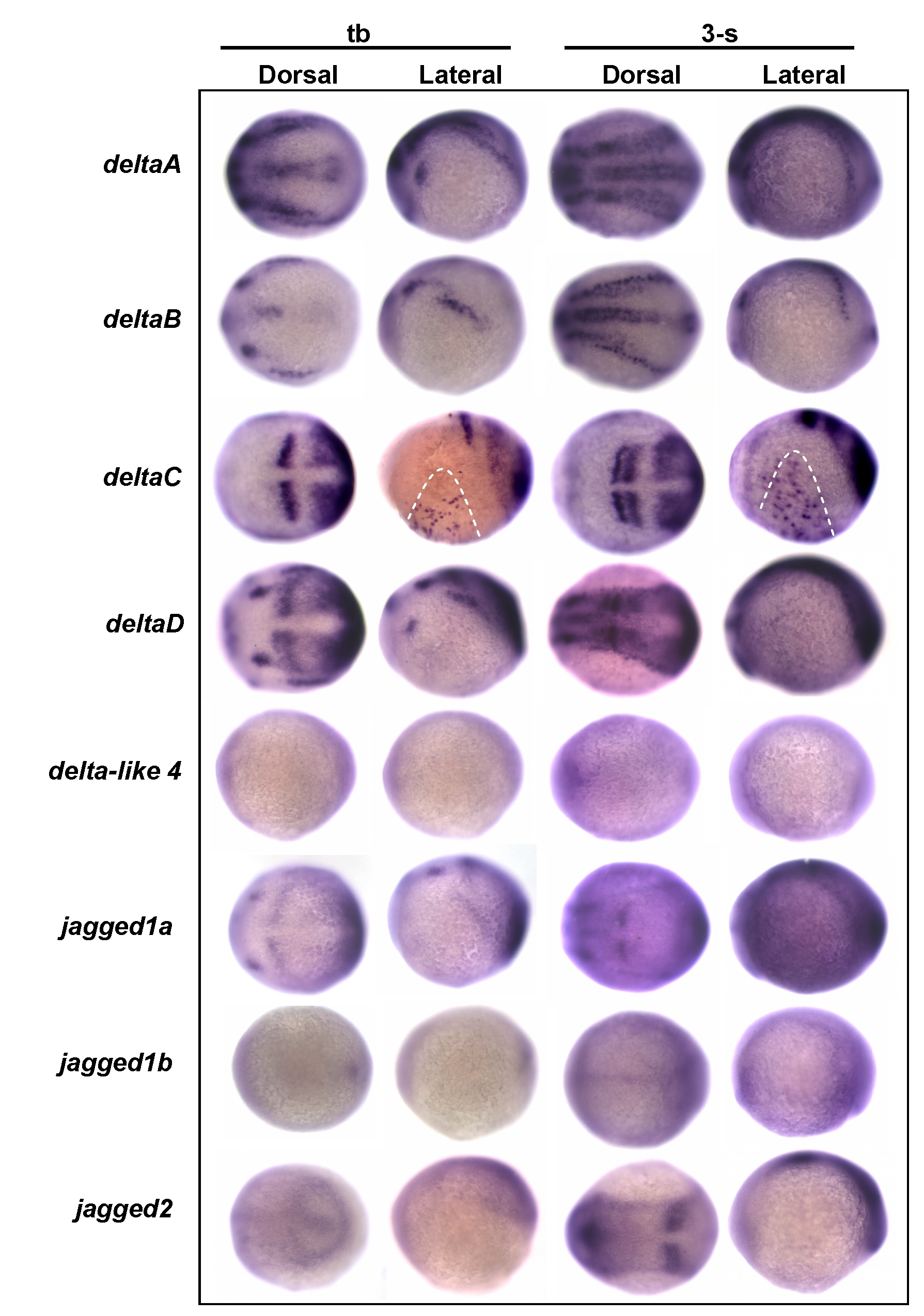

Fig. S2 Screening possible delta/jagged ligand expression in the epidermal ionocyte domain. Embryos aged at the tail bud (tb) to 3-somite (3-s) stages were evaluated in situ with either (A) deltaA, (B) deltaB, (C) deltaC, (D) deltaD, (E) delta-like 4, (F) jagged1a, (G) jagged1b, or (H) jagged2 probes. Among the eight delta/jagged genes tested, only deltaC was detected as being expressed on the epidermal ionocyte domain (highlighted by dotted lines) of the ventral ectoderm.
