Fig. 6

ID
ZDB-IMAGE-051221-7
Genes
Source
Figures for Chen et al., 2005
Figure Caption

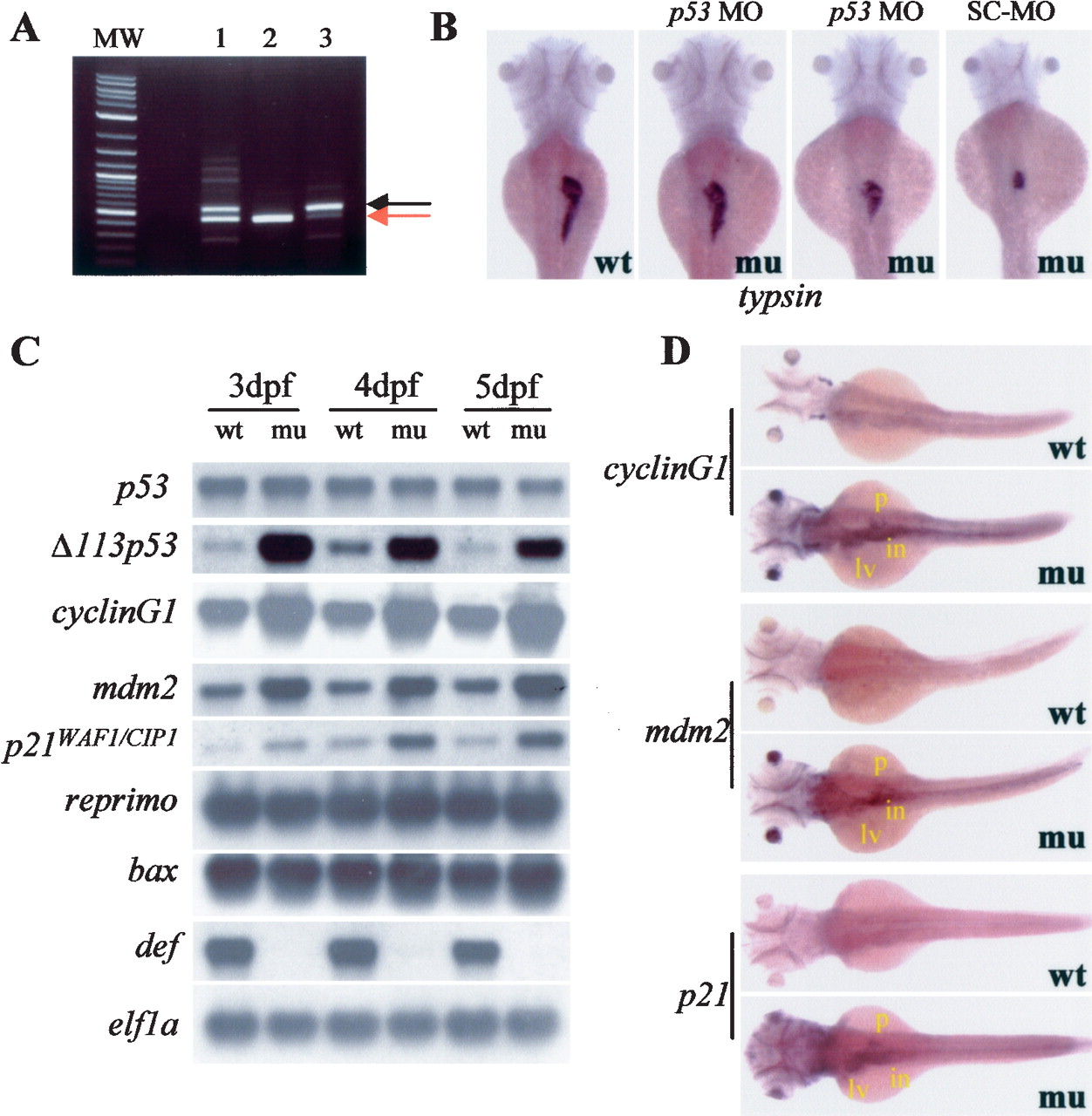

Fig. 6 Cell proliferation-related but not proapoptotic-related p53 response genes are up-regulated in the defhi429 mutant. (A) RT-PCR analysis revealed that the p53 MO created an aberrant product with a larger size resulting from insertion of 89 bp from the intron 5. This 89-bp insertion introduced an early stop codon in the p53 mRNA. (MW) Molecular size marker; (lane 1) 0.5 mM p53 MO; (lane 2) standard control MO (SC-MO, human β-globin antisense morpholinos); (lane 3) 1.0 mM p53 MO; (red arrow) wild type p53; (black arrow) misspliced p53. (B) Injection of p53-MOspl targeting p53 mRNA rescued the mutant phenotype. Embryos 70 h post-injection were used for whole-mount in situ hybridization using a trypsin probe. (mu) Mutant; (wt) wild type. (C) Semiquantitative RT-PCR examination of expression of various p53 response genes in defhi429 mutant (mu) and the wild-type control (wt) at 3, 4, and 5 dpf, respectively. Homozygous defhi429 mutants (confirmed by lacking expression of def) had elevated levels of Δ113p53, cyclin G1, p21WAF1/CIP1, and mdm2 but unchanged levels of p53, reprimo, and bax when compared with the wild type (wt). (D) At 3 dpf, whole-mount in situ hybridization using cyclin G1, mdm2, and p21WAF1/CIP-1 probes showed that the expression of these genes was significantly and specifically increased in the digestive organs. (in) Intestine; (lv) liver; (p) pancreas.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.
In addition, ZFIN would like to thank the authors for kindly granting us permission to reproduce their figures.
Full text @ Genes & Dev.
