Fig. 2

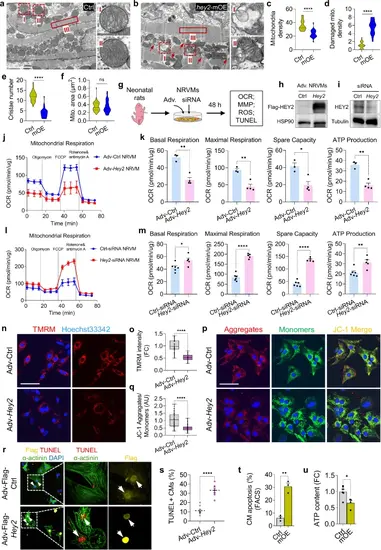

Induced Hey2 expression in adult CMs impairs mitochondrial biogenesis and respiration.a, b Representative TEM images of 2-month-old hey2-mOE and control hearts. Red arrow: degraded mitochondria. Higher-magnification images of the dashed boxes are shown on the right. Scale bar: 2?�m. c?f Quantifications of mitochondria density, damaged mitochondria density, cristae number and mitochondria (mito) area in hey2-mOE and control hearts. density (mito number per 25 �m2): 20 fields. cristae: 28 mito. area: 50 mito. ****P?
