Fig. 2

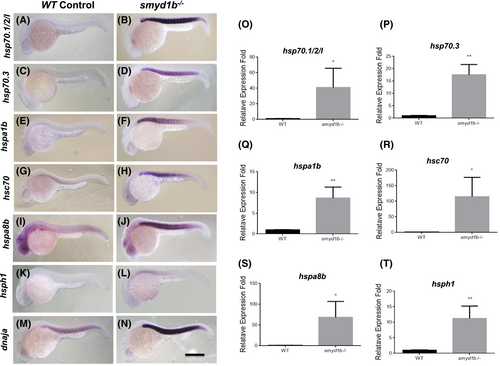

Upregulation of heat shock protein gene expression in smyd1b mutant zebrafish embryos. Hsp70 chaperone and cochaperone gene expression was analyzed in smyd1bsa15678 mutant embryos by in situ hybridization and qRT-PCR at 24 hpf. Compared to the control groups (A, C, E, G, I, K, M), a muscle-specific upregulation of expression was detected for hsp70.1/2/l (B), hsp70.3 (D), hspa1b (F), hsc70 (H), hspa8b (J), hsph1 (L), and dnaja (N) in the smyd1bsa15678 mutant embryos. All larvae are side view, with anterior left and dorsal up. (O?T) Data of qRT-PCR analysis show quantified changes of hsp70.1/2/l (O), hsp70.3 (P), hspa1b (Q), hsc70 (R), hspa8b (S), hsph1 (T) gene expression in smyd1b mutant embryos compared with WT control. * and ** indicate significant difference. Scale bar = 100 ?m.

Expression Data

Genes:	dnaja hsc70 hsp70.3 hspa1b hspa8b hsph1
Fish:	smyd1b^{sa15678/sa15678}
Anatomical Term:	skeletal muscle
Stage:	Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	smyd1b^{sa15678/sa15678}
Observed In:	skeletal muscle
Stage:	Prim-5

Phenotype Detail
