Figure 5

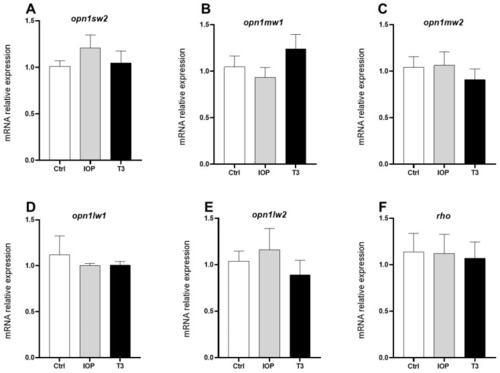

Effect of T3 and IOP treatments upon opsin mRNA expression in 5 dpf zebrafish larvae. (A–F) No significant statistical differences were observed when comparing the control (Ctrl) to T3-treated and IOP-treated groups. Each bar represents the mean fold change ± SEM from four independent experiments, and each sample was analyzed in duplicate. Ribosomal 18S and actin mRNA were used as reference genes to apply the 2^−ΔΔCT formula. Statistical analysis was performed using one-way ANOVA with multiple comparisons and Tukey post hoc tests.

Expression Data

Genes:	opn1lw1 opn1lw2 opn1mw1 opn1mw2 opn1sw2 rho
Fish:	WT
Conditions:	chemical treatment by environment: Iopanoic acid chemical treatment by environment: thyroid hormone
Anatomical Term:	retina
Stage:	Day 5
