Figure 2

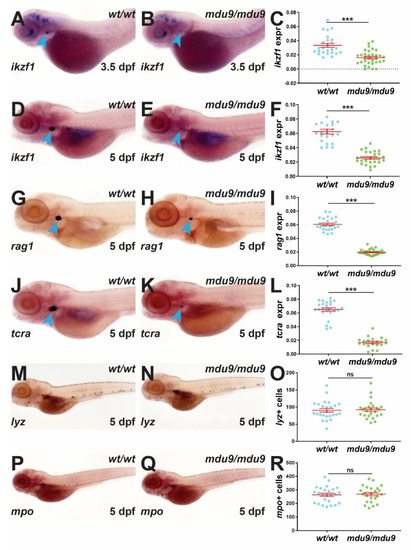

Analysis of embryonic zebrafish carrying Jak3 mutations. Analysis of immune cells in wild-type (wt/wt) and mutant (mdu9/mdu9) jak3 embryos using WISH with ikzf1 at 3.5 dpf (A,B) and 5 dpf (D,E), and rag1 (G,H), tcra (J,K), lyz (M,N) and mpo (P,Q) at 5 dpf. Representative embryos are shown with staining in the thymus indicated with blue arrowheads. Individual embryos were assessed for the area of expression for ikzf1 (C,F), rag1 (I) and tcra (L), expressed as a ratio to eye size averaged for individual embryos, or the number of lyz+ (O) and mpo+ (R) cells. Results for individuals are shown with the mean and SEM in red and level of statistical significance indicated (*** p < 0.001, ns not significant; n = 30). This result was confirmed in an additional experiment.

Expression Data

Genes:	ikzf1 lyz mpx rag1 trac
Fish:	WT jak3^mdu9/mdu9
Anatomical Terms:	leukocyte neutrophil thymus
Stage Range:	Protruding-mouth to Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	jak3^mdu9/mdu9
Observed In:	thymus
Stage Range:	Protruding-mouth to Day 5

Phenotype Detail
