ZFIN ID: ZDB-FIG-200829-81
Zhang et al., 2020 - THOC1 deficiency leads to late-onset nonsyndromic hearing loss through p53-mediated hair cell apoptosis. PLoS Genetics   16:e1008953 Full text @ PLoS Genet.
ADDITIONAL FIGURES
PHENOTYPE:
Fish:
Knockdown Reagent:
Observed In:
Stage Range: Protruding-mouth to Day 4

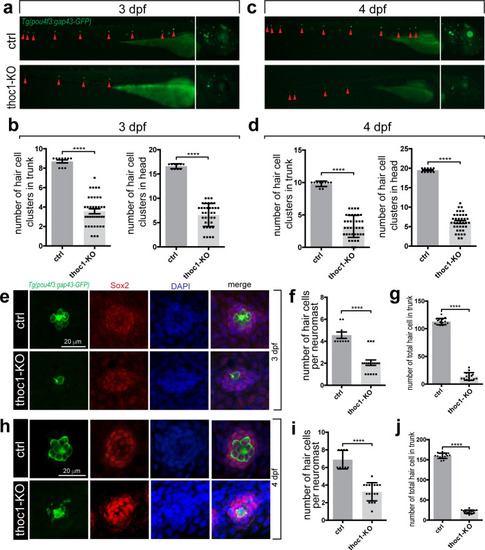

Fig 3 <italic>Thoc1</italic> deficiency caused hair cell developmental defects in zebrafish.

(a) Fluorescence microscopic imaging analysis of thoc1 mutant Tg(pou4f3:gap43-GFP) line at 3 dpf. Arrowheads indicate hair cell clusters. (b) Statistical analysis of the hair cell clusters in control and thoc1 mutants (control, n = 10; thoc1 mutants, n = 37). t-test, ****, p<0.0001. (c) Fluorescence microscopic imaging analysis of thoc1 mutant Tg(pou4f3:gap43-GFP) line at 4 dpf. Arrowheads indicate hair cell clusters. (d) Statistical analysis of the hair cell clusters in control and thoc1 mutants (control, n = 10; thoc1 mutants, n = 38). t-test, ****, p<0.0001. (e) Confocal microscopic imaging analysis of the neuromasts in control and thoc1 mutants at 3 dpf. Green: Tg(pou4f3:gap43-GFP). Red: Sox2 antibody staining marking supporting cells. Blue: DAPI staining of the cell nuclei. (f, g) Statistical analysis of the hair cell number per neuromasts and total number in trunk of control and thoc1 mutants (control, n = 9; thoc1 mutants, n = 17, control, n = 15; thoc1 mutants, n = 15) at 3 dpf. t-test, ****, p<0.0001. (h) Confocal microscopic imaging analysis of the neuromasts in control and thoc1 mutants at 4 dpf. Green: Tg(pou4f3:gap43-GFP). Red: Sox2 antibody staining marking supporting cells. Blue: DAPI staining of the cell nuclei. (i, j) Statistical analysis of the hair cell number per neuromasts and total number in trunk of control and thoc1 mutants (control, n = 9, thoc1 mutants, n = 17; control, n = 15; thoc1 mutants, n = 15) at 4 dpf. t-test, ****, p<0.0001.

Gene Expression Details No data available
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
s356tTg + CRISPR1-thoc1 standard conditions Protruding-mouth neuromast decreased amount, abnormal
Protruding-mouth neuromast hair cell decreased amount, abnormal
Protruding-mouth neuromast has fewer parts of type neuromast hair cell, abnormal
Day 4 neuromast decreased amount, abnormal
Day 4 neuromast hair cell decreased amount, abnormal
