Fig 4

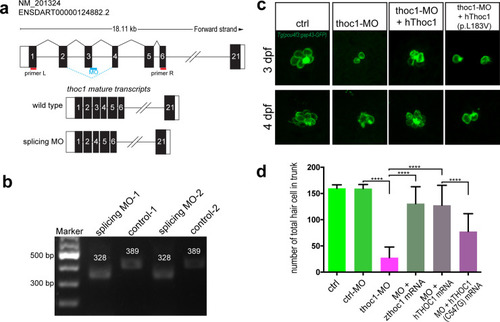

The THOC1 mutation (p. L183V) impaired its function in hair cell formation.

(a) The diagram shows the targeting site of thoc1 splice blocking morpholino and the RT-PCR primers design for validating the knockdown results. The wild type mature transcripts indicate the natural splicing product of thoc1 mRNA. The splicing MO mature transcripts indicate the abnormal splicing product of thoc1mRNA with Exon3 deletion caused by morpholino injection. (b) The agarose gel electrophoresis image shows the 61bp Exon3 deletion. (c) Confocal microscopic imaging analysis of the hair cells in control, thoc1-MO, thoc1 -MO + hThoc1 mRNA, and thoc1-MO + hThoc1 (p. L183V) mRNA Tg(pou4f3:gap43-GFP) at 3 dpf and 4 dpf. (d) Statistical analysis of the total hair cell number in trunk of control (n = 15), control-MO (n = 15), thoc1-MO (n = 15), thoc1-MO + zthoc1 mRNA (n = 15), thoc1-MO + hThoc1 mRNA (n = 15), and thoc1-MO + hThoc1 (p. L183V) mRNA at 4 dpf (n = 15). One-way ANOVA, ****, p<0.0001.
Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagent:
Observed In:
Stage Range: Protruding-mouth to Day 4

Phenotype Detail
