ZFIN ID: ZDB-FIG-190322-20
Laboissonniere et al., 2018 - ALS-associated genes display CNS expression in the developing zebrafish. Gene expression patterns : GEP   30:14-31 Full text @ Gene Expr. Patterns
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Anatomical Terms:
Stage Range: Long-pec to Protruding-mouth

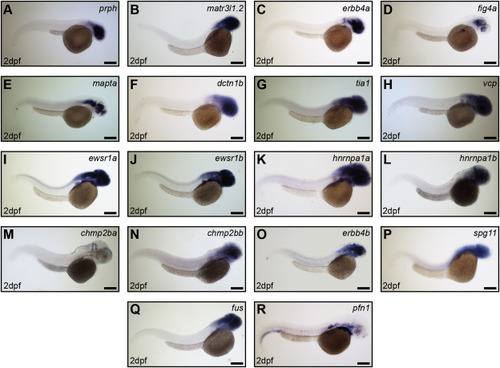

Fig. 1 ALS-linked genes at 2dpf in the zebrafish. The expression pattern of 18 ALS-associated genes were investigated using whole mount in situ hybridization in the zebrafish at 2dpf. The genes examined were: (A) prph, (B) matr3l1.2, (C) erbb4a, (D) fig4a, (E) mapta, (F) dctn1b, (G) tia1, (H) vcp, (I) ewsr1a, (J) ewsr1b, (K) hnrnpa1a, (L) hnrnpa1b, (M) chmp2ba, (N) chmp2bb, (O) erbb4b, (P) spg11, (R) fus, and (S) pfn1. Scale bars represent 200 μm.

Gene Expression Details
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
chmp2ba WT standard conditions Long-pec brain ISH
Long-pec trunk ISH
chmp2bb WT standard conditions Long-pec brain ISH
Long-pec trunk ISH
dctn1b WT standard conditions Long-pec brain ISH
erbb4a WT standard conditions Long-pec brain ISH
erbb4b WT standard conditions Long-pec brain ISH
Long-pec trunk ISH
ewsr1a WT standard conditions Long-pec brain ISH
Long-pec trunk ISH
ewsr1b WT standard conditions Long-pec brain ISH
Long-pec trunk ISH
fig4a WT standard conditions Long-pec brain ISH
fus WT standard conditions Long-pec brain ISH
Long-pec trunk ISH
hnrnpa1a WT standard conditions Long-pec brain ISH
Long-pec trunk ISH
hnrnpa1b WT standard conditions Long-pec brain ISH
Long-pec trunk ISH
mapta WT standard conditions Long-pec brain ISH
matr3l1.2 WT standard conditions Long-pec brain ISH
mnx1 WT standard conditions Protruding-mouth motor neuron ISH
pfn1 WT standard conditions Long-pec head ISH
Long-pec Not Detected nervous system ISH
Long-pec trunk ISH
prph WT standard conditions Long-pec brain ISH
spg11 WT standard conditions Long-pec brain ISH
Long-pec trunk ISH
tia1 WT standard conditions Long-pec brain ISH
Long-pec trunk ISH
vcp WT standard conditions Long-pec brain ISH
Long-pec trunk ISH
Antibody Labeling Details No data available
Phenotype Details No data available
