Fig. 3

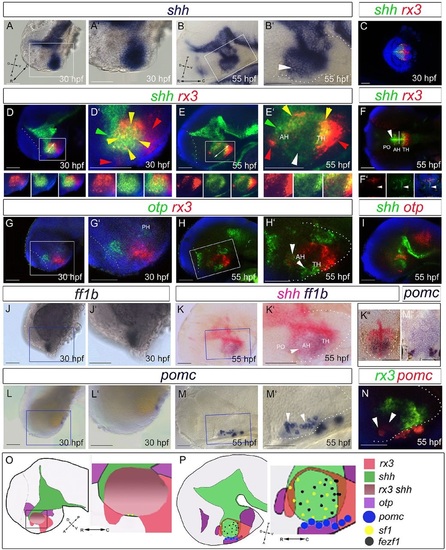

Differentiation in the 30-55hpf anterior/tuberal hypothalamus. (A-N) Side views (A,B,D,E,G-J,L-N), ventral views (C,F), sagittal (K) or transverse (K′′,M′′) sections of 30hpf and 55hpf embryos. A′,M′ show high-power views of boxed regions. In B′,E′,F, white arrowheads point to shh^(weak+) AR cells; in H′, to otpb⁺ cells in the tuberal/anterior hypothalamus; in M′,N, to hypothalamic pomc⁺ cells. In D′,E′, arrowheads point to rx3⁺shh⁺ cells (yellow), rx3⁺ cells (red) or shh⁺ cells (green). (O,P) Schematics depicting expression domains at 30hpf (O) or 55hpf (P). AH, anterior hypothalamus; PH, posterior hypothalamus; PO, preoptic hypothalamus; TH; tuberal hypothalamus. Scale bars: 50µm.

Expression Data

Genes:	nr5a1a otpb pomca rx3 shha
Fish:	WT
Anatomical Terms:	caudal hypothalamic zone hypophysis hypothalamus hypothalamus anterior region hypothalamus posterior region third ventricle anatomical region
Stage Range:	Prim-15 to Long-pec
