FIGURE

Fig. 3

ID

ZDB-FIG-151214-10

Publication

Gokey et al., 2015 - The V-ATPase accessory protein Atp6ap1b mediates dorsal forerunner cell proliferation and left-right asymmetry in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3

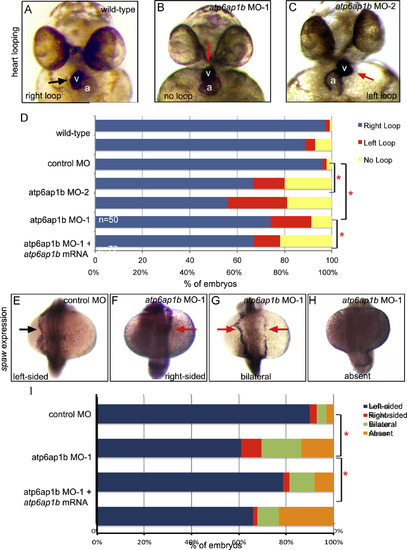

Depletion of maternal and zygotic Atp6ap1b disrupted LR patterning. (A–C) RNA in situ hybridizations of the cardiac-specific cmlc2 marker were used to assess heart looping (arrow) at 2 dpf. v=ventricle; a=atrium. Normal rightward looping (A) was observed in wild-type embryos, whereas heart looping often failed (B) or was reversed (C) in embryos injected with two different translation-blocking MOs. (D) Quantification of heart looping phenotypes in atp6ap1b MO embryos. MO-induced heart looping defects were partially rescued by co-injection with atp6ap1b mRNA. (E–H) RNA in situ hybridization analysis of spaw expression (arrow) at 18 somite stage that is left-sided in controls (E), but reversed (F), bilateral (G) or absent (H) in many atp6ap1b MO embryos (I).

Expression Data

Genes:	myl7 spaw
Fish:	WT WT + MO1-atp6ap1b WT + MO2-atp6ap1b
Knockdown Reagents:	MO1-atp6ap1b MO2-atp6ap1b
Anatomical Terms:	heart mesoderm mesoderm left side mesoderm right side
Stage Range:	14-19 somites to Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-atp6ap1b WT + MO2-atp6ap1b
Knockdown Reagents:	MO1-atp6ap1b MO2-atp6ap1b
Observed In:	determination of left/right asymmetry in lateral mesoderm heart looping mesoderm mesoderm right side
Stage Range:	14-19 somites to Long-pec

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 407(1), Gokey, J.J., Dasgupta, A., Amack, J.D., The V-ATPase accessory protein Atp6ap1b mediates dorsal forerunner cell proliferation and left-right asymmetry in zebrafish, 115-30, Copyright (2015) with permission from Elsevier. Full text @ Dev. Biol.
