ZFIN ID: ZDB-FIG-151214-15
Gokey et al., 2015 - The V-ATPase accessory protein Atp6ap1b mediates dorsal forerunner cell proliferation and left-right asymmetry in zebrafish. Developmental Biology   407(1):115-30 Full text @ Dev. Biol.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Antibody:
Fish:
Anatomical Terms:
Stage Range: 1-cell to Days 7-13
PHENOTYPE:
Fish:
Observed In:
Stage Range: Long-pec to Days 7-13

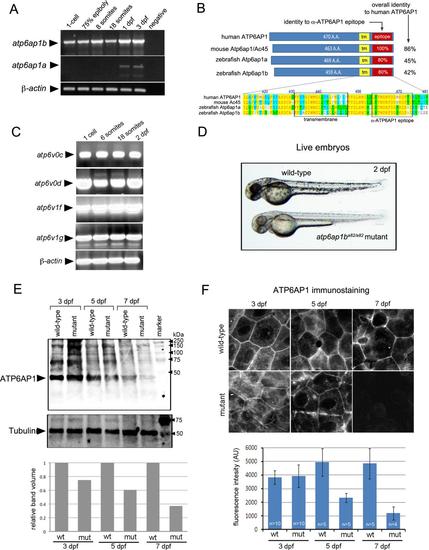

Fig. S1 Expression of the zebrafish V-ATPase accessory protein Atp6ap1b. (A) RT-PCR of temporal expression of atp6ap1b and atp6ap1a through the first three days of development. β-actin was used as a loading control. (B) Schematic diagram and alignment of human, mouse and zebrafish Atp6ap1 proteins. (C) RT-PCR detected maternal mRNA (at the 1-cell stage) of several V-ATPase subunits and then sustained expression through 2dpf. β-actin mRNA was used as a loading control. (D) Homozygous atp6ap1ba82/a82 mutants developed pigmentation phenotypes relative to wild-type siblings. (E) Western blot analysis of Atp6ap1 in wild-type and atp6ap1ba82/a82 mutant embryos at 3, 5 and 7 dpf. A prominent band just under 50 kDa was reduced in mutants. Tubulin was used as a loading control. The graph depicts relative intensities of the Atp6ap1 band from one representative experiment. (F) Fluorescent immunostaining of Atp6ap1 in surface cells of wild-type and atp6ap1ba82/a82 mutant embryos at 3, 5 and 7 dpf. The graph shows the average fluorescent intensity of Atp6ap1 staining.

Gene Expression Details
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
atp6ap1a WT standard conditions 1-cell Not Detected whole organism RTPCR
75%-epiboly Not Detected whole organism RTPCR
5-9 somites Not Detected whole organism RTPCR
14-19 somites Not Detected whole organism RTPCR
Prim-5 whole organism RTPCR
Protruding-mouth whole organism RTPCR
atp6ap1b WT standard conditions 1-cell whole organism RTPCR
75%-epiboly whole organism RTPCR
5-9 somites whole organism RTPCR
14-19 somites whole organism RTPCR
Prim-5 whole organism RTPCR
Protruding-mouth whole organism RTPCR
atp6v0ca WT standard conditions 1-cell whole organism RTPCR
5-9 somites whole organism RTPCR
14-19 somites whole organism RTPCR
Long-pec whole organism RTPCR
atp6v0d1 WT standard conditions 1-cell whole organism RTPCR
5-9 somites whole organism RTPCR
14-19 somites whole organism RTPCR
Long-pec whole organism RTPCR
atp6v1f WT standard conditions 1-cell whole organism RTPCR
5-9 somites whole organism RTPCR
14-19 somites whole organism RTPCR
Long-pec whole organism RTPCR
atp6v1g1 WT standard conditions 1-cell whole organism RTPCR
5-9 somites whole organism RTPCR
14-19 somites whole organism RTPCR
Long-pec whole organism RTPCR
Antibody Labeling Details
Antibody Assay Fish Conditions Stage Anatomy
Ab1-atp6ap1 IHC WT standard conditions Protruding-mouth cell plasma membrane
IHC Day 5 cell plasma membrane
IHC Days 7-13 cell plasma membrane
IHC atp6ap1bau82/au82 control Protruding-mouth cell plasma membrane
IHC Day 5 cell plasma membrane
IHC Days 7-13 cell plasma membrane
WB WT control Protruding-mouth whole organism
WB Day 5 whole organism
WB Days 7-13 whole organism
WB atp6ap1bau82/au82 standard conditions Protruding-mouth whole organism
WB Day 5 whole organism
WB Days 7-13 whole organism
Phenotype Details
Fish Conditions Stage Phenotype
atp6ap1bau82/au82 control Protruding-mouth cell plasma membrane Ab1-atp6ap1 labeling decreased amount, abnormal
Day 5 cell plasma membrane Ab1-atp6ap1 labeling decreased amount, abnormal
Days 7-13 cell plasma membrane Ab1-atp6ap1 labeling decreased amount, abnormal
atp6ap1bau82/au82 standard conditions Long-pec whole organism decreased pigmentation, abnormal
Protruding-mouth whole organism Ab1-atp6ap1 labeling decreased amount, abnormal
Day 5 whole organism Ab1-atp6ap1 labeling decreased amount, abnormal
Days 7-13 whole organism Ab1-atp6ap1 labeling decreased amount, abnormal
Acknowledgments:
ZFIN wishes to thank the journal Developmental Biology for permission to reproduce figures from this article. Please note that this material may be protected by copyright.

Reprinted from Developmental Biology, 407(1), Gokey, J.J., Dasgupta, A., Amack, J.D., The V-ATPase accessory protein Atp6ap1b mediates dorsal forerunner cell proliferation and left-right asymmetry in zebrafish, 115-30, Copyright (2015) with permission from Elsevier. Full text @ Dev. Biol.
