Fig. 2

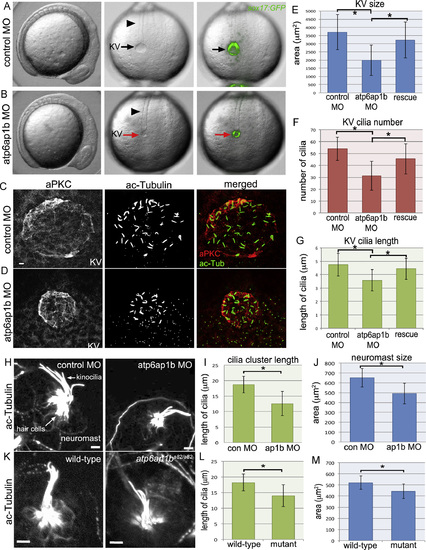

Atp6ap1b depletion altered KV organ size and cilia formation. (A, B) Analysis of live Tg(sox17:GFP) embryos injected with control (A) or atp6ap1b MO (B) at the 8 somite stage. atp6ap1b MO embryos were indistinguishable from controls except for the small size of KV (arrows) labeled by GFP expression. The notochord (arrowheads) appeared normal in atp6ap1b MO embryos. (C, D) Immunofluorescent staining of KVs using aPKC antibodies to label apical membranes and acetylated tubulin (ac-Tub) antibodies to label cilia in control (C) or atp6ap1b (D) MO embryos. (E–G) Quantification of KV area (E), KV cilia number (F), and KV cilia length (G) in control MO (n=32) embryos, atp6ap1b MO injected (n=53) embryos and rescue (n=34) embryos co-injected with atp6ap1b MO+atp6ap1b mRNA. (H-M) Analysis of neuromasts stained with ac-Tub antibodies at 3 dpf in control MO and atp6ap1b MO embryos (H) or wild-type and atp6ap1b^a82/a82 mutants (K). Kinocilia cluster length and neuromast area were reduced in atp6ap1b MO injected (n=13) embryos relative to controls (n=13) (I–J) and in atp6ap1b^a82/a82 mutants (n=7) relative to wild-type (n=7) siblings (L–M). All scale bars=5 µm.

Expression Data

Gene:	GFP
Antibodies:	Ab1-prkcz Ab1-tuba
Fish:	WT atp6ap1b^au82/au82 WT + MO1-atp6ap1b s870Tg s870Tg + MO1-atp6ap1b
Knockdown Reagent:	MO1-atp6ap1b
Anatomical Terms:	Kupffer's vesicle Kupffer's vesicle apical plasma membrane Kupffer's vesicle cilium neuromast hair cell kinocilium
Stage Range:	5-9 somites to Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	atp6ap1b^au82/au82 WT + MO1-atp6ap1b s870Tg + MO1-atp6ap1b
Knockdown Reagent:	MO1-atp6ap1b
Observed In:	ciliated cell cell Kupffer's vesicle Kupffer's vesicle cilium neuromast neuromast kinocilium
Stage Range:	5-9 somites to Protruding-mouth

Phenotype Detail
